Description
- USB Drive / USB-HDD Duplicator
- 16 GB/min Super High Speed
- Light weight portable design.
- USB quality check with inspection tools.

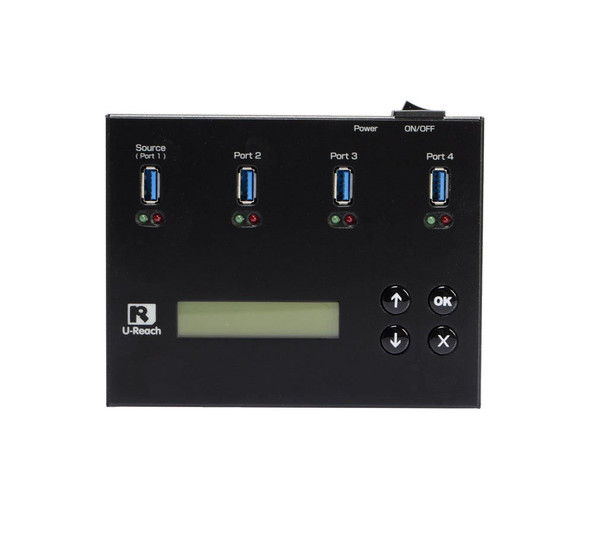

The USB 3.1 Flash Duplicator and Tester was designed with diversified media compatibility and high-speed performance in mind to not only flawlessly duplicate in high speed demands, but also provides helpful examinations by delivering the most accurate testing functions known today. The user-friendly interface offers stress-free operation with no steep learning curve to climb. Its ergonomic design facilitates efficient operation through simpler insertion and removal of flash cards.
- Ultra-high transmission speed.
- Real multitask processing capability. Whether copy, compare, media check or format, each feature is independently executed. Each flash slot has an independent processing unit.
- Powerful H2/H5 for speed and flash quality check.
- “Signal Test” feature can verify the USB2.0 / 3.1 signal is viable within only few seconds.
- Non-PC based, with no risk of virus infection.
- One touch copy. Real time information will be displayed on the LCD screen.
- Supports Asynchronous erase/format/media check/speed check. The status of each flash media can be viewed during copy operation by pressing the▲▼keys.
- Ultra-high speed bit-for-bit hardware comparison.
- Various copy speed selection is available for assorted flash media quality
- Special speed selection function to filter out qualified flash media during quality control process.
Features
- Bandwidth Performance: Maximum transfer speed up to 16GB/min.
- Read-Only Source Port: U-Reach’s Source port (Port 1) default setting is a read-only port, which will not overwrite any data (e.g. Time-stamping) to your source device. This is critical for data integrity during the mass duplication process.
- USB Quality Check: USB Quality Check contains several inspection tools at the operator’s disposal to perform mass quality testing, while improving work efficiencies.
- Stand-Alone Operating System: FPGA-based system design runs on UReach’s proprietary firmware requiring no PC to operate and eliminates the risk of computer virus infections.
- Light Weight Design: Light weight design for mobility. Process tasks quickly and easily which is great for backup and small productions.
Intelligent Copy Option
Systems and Files (Quick Copy Mode)
- The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
- This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to "whole media copy" mode.
Whole Media
- The duplicator copies from the initial sector to the end, bit-by-bit.
- There are no format limitation in this mode.
Quality Inspection
- H2 Read/write speed inspection: In-built H2 test with read/write speed inspection which is being widely used in the industry.
- H5 Read/write speed inspection : strictest quality inspection by writing into and reading the flash memory.
- * Can set the area in the NAND flash to be inspected/Read/write speed filtering/Bad sector inspection.
Sanitization Functions
Erase Functionality Compliant with NIST SP 800-88r1 and DoD 5220-M Standards Secure erase functions wipe drive contents within seconds
Quality Testing / Checking Functions
Capacity Check
Verifies the initial sector and the final sector of the connected flash device within 2 seconds.
H3 Read Only Test
This function tests the readability of every sector on the connected USB device(s) and provides an average read speed. This test will not alter the data on the device(s).
H5 Write/Read Test
Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, the devices are then formatted into FAT.
H6 Quality Test
Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.
Questions & Answers
What are the distinctions between the "Quick Copy" and "Whole Media" duplication methods?
Quick Copy: (Function 7.2 Copy Area - System and Files) This method reduces duplication time by copying only the data-containing areas within supported formats. The duplicator analyzes data formats, capacities, and locations before starting. If the source data is larger than the target’s capacity, the copy will fail.
Whole Media Copy: (Function 7.2 Copy Area - Whole Media) This skips analysis and performs a bit-by-bit duplication of the entire source device. It is slower but ensures the most accurate data replication.
Why is the duplication process slow?
U-Reach flash duplicators support copy speeds of up to 33MB/sec. If duplication is slower than expected, use Function 6.2 Measure Speed to test read/write speeds. For example, a writing speed of 10MB/sec will take about 2 minutes to duplicate 1GB of data.
What diagnostic tools are available for the flash duplicator?
- Function 4: Media Check – Performs a bit-by-bit inspection to detect bad sectors.
- Function 6.2: Measure Speed – Measures actual read/write speed within 10 seconds for quality control.
- Function 6.3: Capacity Check – Verifies the true capacity of inserted devices and detects counterfeits.
How can data duplication accuracy be ensured?
- Use Function 6.8 Calc. Checksum to verify source data consistency and record checksum values.
- Use Function 2 Compare to perform a hardware-enabled bit-by-bit comparison of source and target data.
What should I do if I see a "No Update File" message during a BIOS update?
- Ensure the BIOS file is unzipped and not in a compressed format.
- Store the BIOS file in the root directory with no folders.
- Try saving the file to another device to rule out device failure.
- Re-download the BIOS file and temporarily disable any interfering utilities.
- Confirm the BIOS file matches the product model you're updating.
What causes immediate duplication failure after starting the copy process?
- Ensure the source data size does not exceed the target’s capacity.
- When duplicating NTFS-formatted sources, the target must have at least 1MB more space.
- Use a PC to check for errors on the source device.
- Check if SD cards are locked if duplication fails immediately.
Why do some ports display a red indicator light after the copy is completed?
- If the same port always shows a red light, it may be worn and need replacement — contact your vendor.
- Low-quality flash adapters (e.g. MicroSD-to-SD) can cause instability — try a higher-quality brand.
- Unstable flash memory may require multiple duplication attempts — consider using professional-grade duplicators for mass copying.
Technical Specs
Specification: | |
---|---|
Model: | USBA1 |
Target: | 3 |
Capacity: | Supports the largest sized devices available on the market. |
Speed Performance: | Up to 16GB/min *Actual Performance is dependent on device's transfer speeds |
Supported Formats: |
Quick Copy (System and Files): FAT16/32, exFAT, Windows (NTFS) and Linux (Ext2/Ext3/Ext4) Whole Media Copy: All Formats, including propietary formats |
Supported Capacity: | Over 18TB |
Operation Mode: | Stand-alone, FPGA-based operation |
Functions: | |
Copy Modes: | Systems & Files, Whole Media |
Compare Function: | Bit-by-bit data comparison |
Sanitization Modes: | Quick Erase, Full Erase (NIST 800-88), DoD Erase (DoD 5220.22-M) |
Media Checking Tools: | Diverse tools for verifying flash quality for bad sectors, capacity authenticity, and read/write speeds |
Format Function: | Automatically detects and formats device(s) to either FAT16 or FAT32. |
USB2.0/3.0 Signal Test: | Test if USB2.0/3.1 signal is viable within few seconds |
Compatibilities: | |
Compatibile Device: | USB1.1/2.0/3.1 devices and USB-HDDs |
Compatibile Device (with required adapter ): |
eUSB (USB DOM) 2.54mm and 2.00mm |
Supported O/S: | All (Windows, Mac, Linux, and other propietary systems) |
Supported Formats: |
Quick Copy (System and Files): FAT16/32, exFAT, Windows (NTFS) and Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX). Whole Media Copy: All Formats, including propietary formats. GPT, MBR, and Advanced Formats |
Hardware Specification: | |
Dimensions: |
4.65 in. x 5.91 in. x 1 in. |
Weight: | 1.5 lbs. |
LCD Display: | 2x20 Backlit Monochrome LCD Display |
LEDs: | 2 LED (Red/Green) Indicators per Port |
Control Panel: | 4 Push Buttons (up, down, OK, ESC) |
Power Requirements: | 12V 5A Adapter |
Temperature: | Working: 0° C ~ 60° C Storage: -20° C ~ 85° C |
Humidity: | Working: 20% ~ 80% Storage: 5% ~ 95% |
Certifications: | FCC, CE, RoHS, and Reach |
