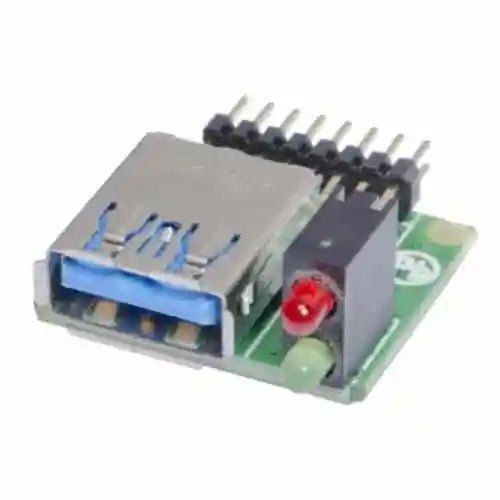

USB Socket Module for Intelligent U3 (2-Pack)

Replacement socket module for U-Reach modular duplicators. The USB Socket Module for Intelligent U3 (2-Pack) provides USB ports for the Intelligent U3 series. Match the module to your duplicator series and interface.

Application:

Replace damaged socket for Intelligent U3

Features

1. Connect USB 3.0 Device
2. Display Status：Pass(Green) / Fail(Red)



Specifications

• • Host Side Dip 8*2 pin
  • Device Side USB 3.0 Type-A Female
  • Dimension 24.5 * 28.65 * 11.3 (mm)
  • Working Temperature 5°C ~ 45°C (41°F ~ 113°F)
  • Storage Temperature -20°C ~85°C (-4°F ~ 185°F)
  • Working Humidity 20% ~ 80%
  • Storage Humidity 5% ~ 95%
  • Power Host USB 5V/ 1.5A
  • (For Intelligent 9 U3 Series USB Duplicator only!)

Match the module to your duplicator series and interface before ordering. If you're unsure which socket your machine uses, send us the model and we'll confirm. See the full Socket Modules & Modular Ports range, or contact us to confirm the correct module for your series.
