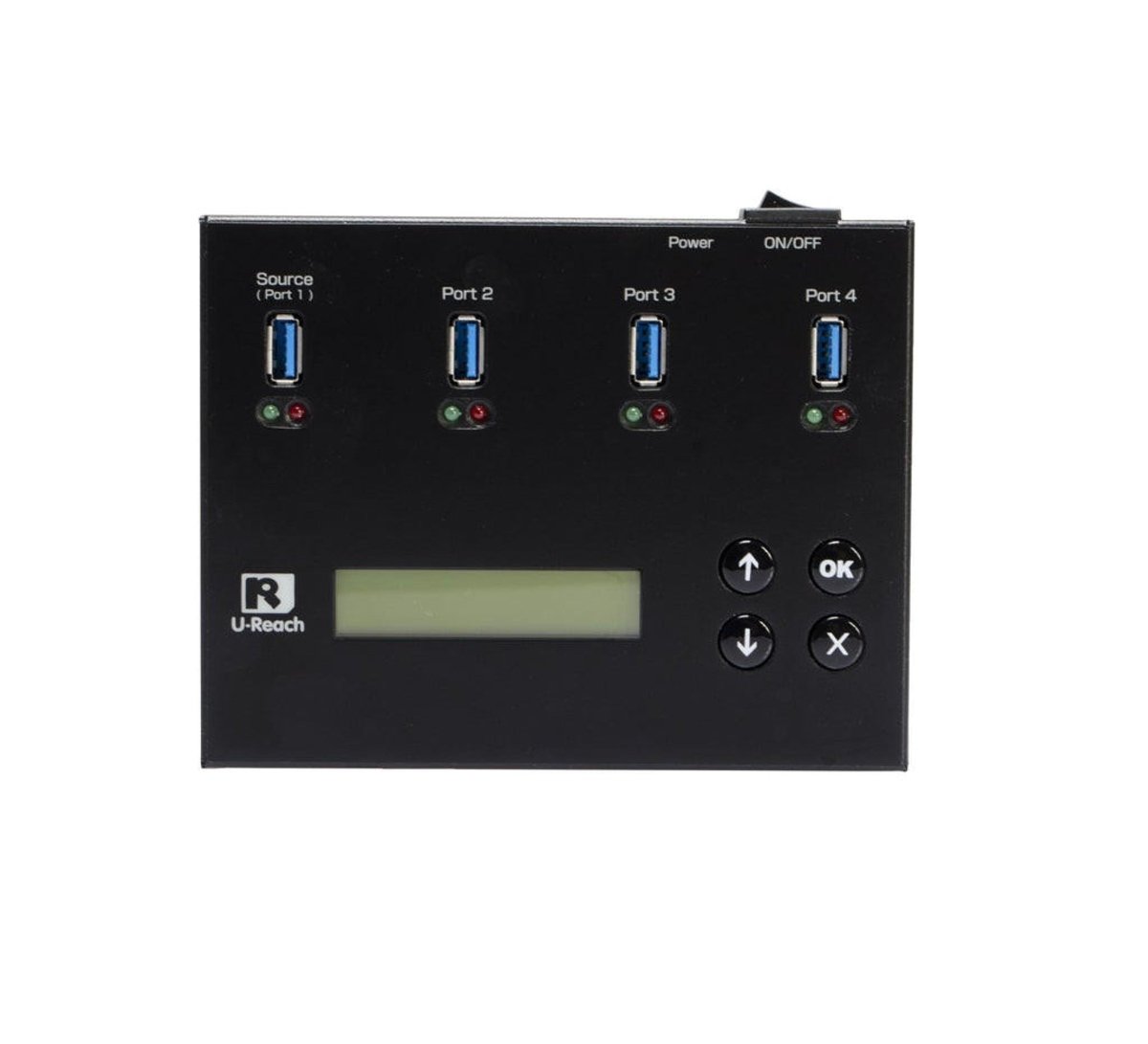

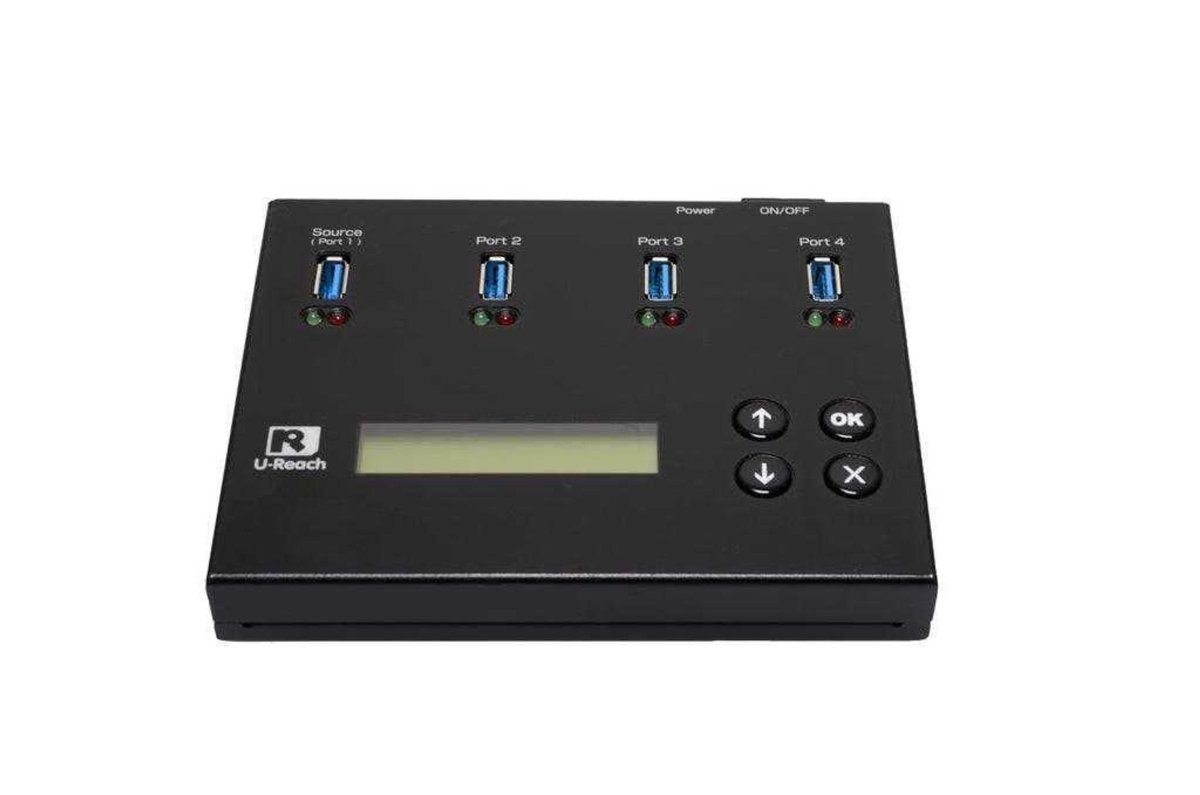

USB 3.2 Portable Flash Duplicator and Sanitizer 1 to 3

The USB 3.2 Flash Duplicator and Tester was designed with diversified media compatibility and high-speed performance in mind to not only flawlessly duplicate in high speed demands, but also provides helpful examinations by delivering the most accurate testing functions known today. The user-friendly interface offers stress-free operation with no steep learning curve to climb. Its ergonomic design facilitates efficient operation through simpler insertion and removal of flash cards.

• • Ultra-high transmission speed.
  • Real multitask processing capability. Whether copy, compare, media check or format, each feature is independently executed. Each flash slot has an independent processing unit.
  • Powerful H2/H5 for speed and flash quality check.
  • “Signal Test” feature can verify the USB 2.0 / 3.0 / 3.1 signal is viable within only few seconds.
  • Non-PC based, with no risk of virus infection.
  • One touch copy. Real time information will be displayed on the LCD screen.
  • Supports Asynchronous erase/format/media check/speed check. The status of each flash media can be viewed during copy operation by pressing the▲▼keys.
  • Ultra-high speed bit-for-bit hardware comparison.
  • Various copy speed selection is available for assorted flash media quality
  • Special speed selection function to filter out qualified flash media during quality control process.

Features

• • Bandwidth Performance: Maximum transfer speed up to 16GB/min.
  • Read-Only Source Port: U-Reach’s Source port (Port 1) default setting is a read-only port, which will not overwrite any data (e.g. Time-stamping) to your source device. This is critical for data integrity during the mass duplication process.
  • USB Quality Check: USB Quality Check contains several inspection tools at the operator’s disposal to perform mass quality testing, while improving work efficiencies.
  • Stand-Alone Operating System: FPGA-based system design runs on UReach’s proprietary firmware requiring no PC to operate and eliminates the risk of computer virus infections.
  • Light Weight Design: Light weight design for mobility. Process tasks quickly and easily which is great for backup and small productions.

Intelligent Copy Option

Systems and Files (Quick Copy Mode)

• • The duplicator automatically copies only the data area, rather than the empty spaces within the capacity, which reduces the duration of the copy process.
  • This copy mode supports the file formats such as Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). If the file system format to be copied is not among the supported formats above, then system will automatically switch to "whole media copy" mode.

Whole Media

• • The duplicator copies from the initial sector to the end, bit-by-bit.
  • There are no format limitation in this mode.

Quality Inspection

• • H2 Read/write speed inspection: In-built H2 test with read/write speed inspection which is being widely used in the industry.
  • H5 Read/write speed inspection: strictest quality inspection by writing into and reading the flash memory.
  • * Can set the area in the NAND flash to be inspected/Read/write speed filtering/Bad sector inspection.

Sanitization Functions

Erase Functionality Compliant with NIST SP 800-88r1 and DoD 5220-M Standards Secure erase functions wipe drive contents within seconds

Quality Testing / Checking Functions

• • Capacity Check - Verifies the initial sector and the final sector of the connected flash device within 2 seconds.
  • H3 Read Only Test - This function tests the readability of every sector on the connected USB device(s) and provides an average read speed. This test will not alter the data on the device(s).
  • H5 Write/Read Test - Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, the devices are then formatted into FAT.
  • H6 Quality Test - Resembling the H5 test, it overwrites machine generated-values only to the empty sectors without disturbing pre-existing data, partitions, and formats.
