U-Raze USB Disk Eraser — Portable Data Erasure Software

THE PROBLEM U-RAZE SOLVES

Deleting files doesn't destroy data. Formatting a drive doesn't either. Even a factory reset can leave recoverable traces behind. For organizations handling sensitive information — patient records, financial data, classified material, customer PII — that's an unacceptable risk.

Dedicated hardware erasure appliances solve the problem, but they're expensive, bulky, and locked to a single workstation. The U-Raze USB Disk Eraser takes a different approach: it puts certified, multi-algorithm data erasure inside a USB flash drive that fits in your pocket.

Boot any x86-64 PC, Mac (Intel), or Chromebook from the U-Raze drive, select the target storage device, choose your erasure method, and press OK. The built-in operating system handles everything — no host OS required, no installation, no residual software left behind. When the job is done, a PDF erasure certificate is automatically saved to the USB for your compliance records.

KEY FEATURES

13 Certified Erasure Methods

U-Raze supports a full spectrum of data sanitization algorithms — from single-pass overwrites to multi-pass military-grade standards. Every method is selectable from the on-screen menu before each erasure job.

Select a method based on your organization's compliance requirements. For most enterprise and government use cases, Secure Erase or Sanitize Erase (firmware-level commands) offer the fastest and most thorough erasure for modern SSDs. Multi-pass overwrite methods like DoD 5220.22-M remain the standard for legacy HDD environments.

No Installation. No Host OS. No Trace.

U-Raze boots its own lightweight operating system directly from the USB drive via BIOS or UEFI. The host computer's installed OS is never loaded, so there's no risk of malware interference, no software to maintain, and no forensic trace left on the target machine. Plug it into any PC with a USB 2.0+ port, select the USB as the boot device, and you're running.

Works with Any Drive Interface

U-Raze erases any storage device the host computer can see — whether it's an internal SATA HDD, an NVMe M.2 SSD, an eMMC module (common in Chromebooks), an IDE legacy drive, or an external USB storage device. If the computer's BIOS can detect it, U-Raze can erase it.

Automatic PDF Audit Reports

Every erasure job generates a detailed PDF report saved directly to the U-Raze USB drive. Each report includes the target drive model, serial number, capacity, sector size, erasure method used, operator name, start and end timestamps, duration, and pass/fail result. Reports are viewable on-device through the built-in Log Report Viewer, or you can copy the PDF files to any destination for archiving.

Disk Explorer & Disk Viewer

Before and after erasure, the built-in Disk Explorer shows all detected drives with their model, serial, capacity, and connection type. The Disk Viewer lets you inspect raw drive contents at the hex level — sector by sector — to visually confirm that data has been fully overwritten. This is useful for post-erasure verification or pre-erasure content review.

User Profiles for Multi-Operator Tracking

Set a username before starting any erasure task. The operator name is recorded on every PDF report, creating a clear chain of custody that shows who performed each erasure. This is essential for ITAD operations, compliance audits, and multi-technician environments.

Format After Erase

Optionally reformat the target drive after erasure in the file system of your choice — NTFS, FAT32, EXFAT, or EXT4 — so the drive is ready for immediate redeployment or resale. If reformatting isn't needed, select "None" and the erased drive will remain unformatted.

Frozen Drive Handling

Some drives (especially SATA SSDs in laptops) report a "Frozen" security state that blocks Secure Erase commands. U-Raze provides a built-in sleep/wake workaround: put the system to sleep, wake it, and the drive transitions to an "Available" state — all without disconnecting hardware or leaving the U-Raze interface.

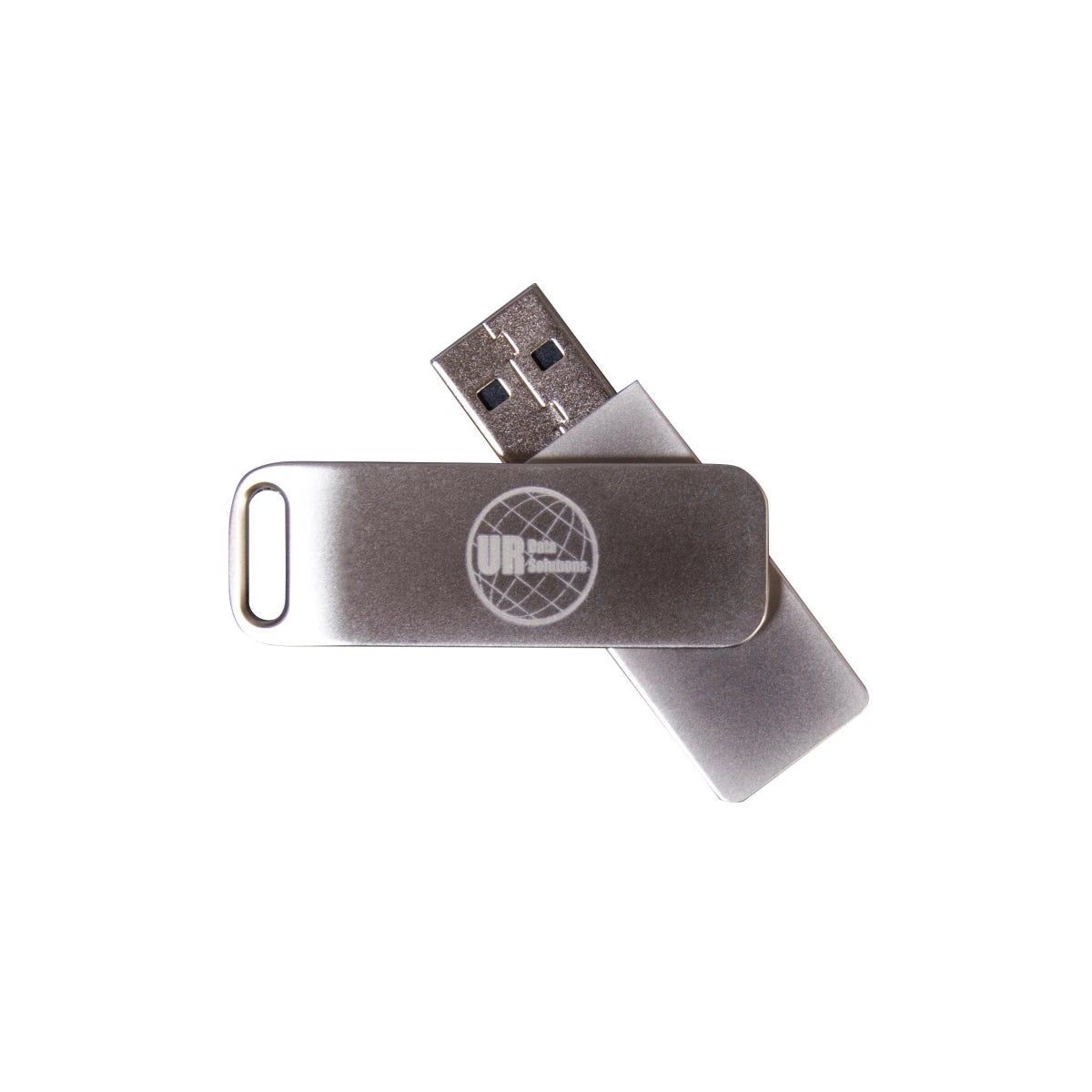

Compact Metal Construction

The U-Raze USB device measures just 67mm × 19mm × 6mm (about the size of a car key fob) with a durable metal swivel chassis. Carry it on a keychain, in a toolbox, or in a shirt pocket. At 0.03 kg, it adds essentially zero weight to your field kit.

HOW IT WORKS

• • Step 1 — Connect the Target Drive.
    Install the HDD, SSD, or NVMe drive into the target computer (or connect it externally via USB).


  • Step 2 — Insert the U-Raze USB.
    Plug the U-Raze drive into any available USB port on the target computer.


  • Step 3 — Boot from the U-Raze Drive.
    Power on the computer and access the boot menu (commonly F2, F10, F12, Delete, or Esc for PCs and Chromebooks; the Option key for Intel Macs). Select the U-Raze USB as the boot device.


  • Step 4 — Select Your Target Drive.
    The U-Raze Disk Explorer automatically detects all connected storage devices. Select the drive you want to erase.


  • Step 5 — Choose Your Erasure Method.
    Pick from 13 available algorithms based on your compliance requirements. Optionally select a post-erase format. Review the target and method, then confirm.


  • Step 6 — Collect Your Report.
    When erasure is complete, a PDF certificate is automatically saved to the U-Raze USB. View it on-screen through the Report Viewer, or copy the file later for your records.

IDEAL FOR

• • IT Asset Disposition (ITAD) — Field-portable erasure for client-site data sanitization with PDF audit trail
  • Enterprise IT Refresh Cycles — Wipe and redeploy laptops, desktops, and servers without dedicated hardware
  • Education & School Districts — Mass Chromebook and laptop erasure before redistribution, donation, or surplus
  • Healthcare / HIPAA — Certified erasure of ePHI from decommissioned workstations and storage
  • Government & Defense — DoD 5220.22-M and NSA 130-1 compliant erasure for classified system decommission
  • Financial Services — PCI DSS and SOX data retention compliance for end-of-life equipment
  • MSPs & VARs — Add certified erasure services to your offering with zero capital equipment investment
  • Refurbishment & Resale — Clean, format, and certify used drives before remarketing

CERTIFICATIONS

Supported Platform

U-Raze works with any x86-64 computer that supports USB boot — including Windows PCs, Intel-based Macs, and Chromebooks. The built-in OS is platform-agnostic; no drivers or host software are required.

Important: Not supported on Apple Silicon (M1, M2, M3, or newer) Macs. Requires Intel-based Mac hardware.

Chromebook Compatibility

U-Raze has been tested and verified on 200+ Chromebook models across all major OEMs including HP, Lenovo, Acer, ASUS, Samsung, Dell, Google, CTL, Framework, AOpen, Viewsonic, PCmerge, and Toshiba.
