NV-BM S Series PCIe M.2 NVMe and M.2 Duplicator and Sanitizer
Couldn't load pickup availability

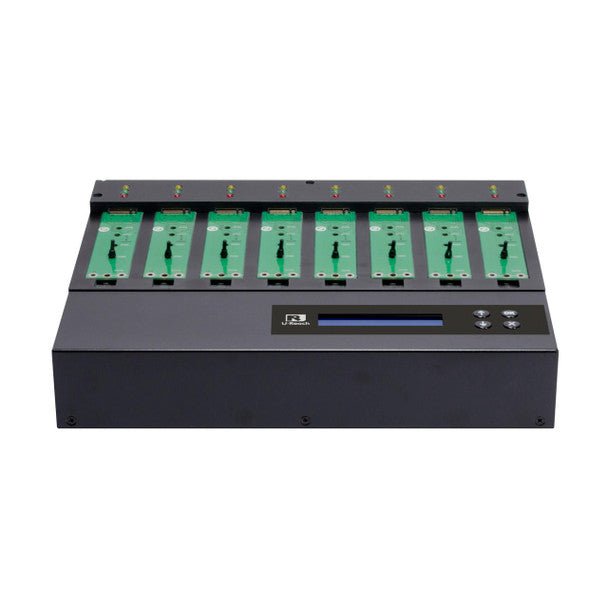

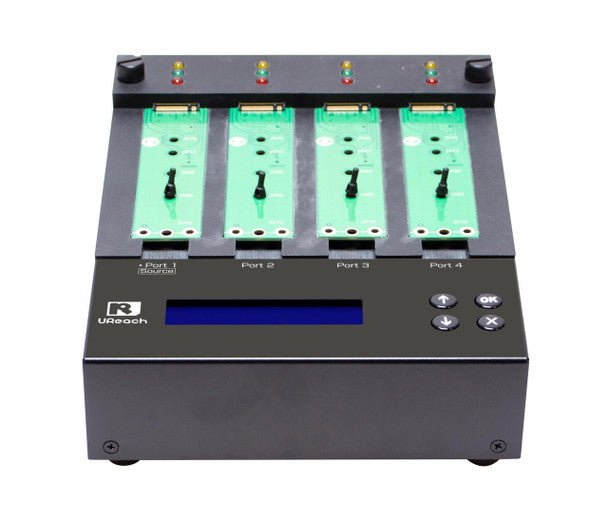

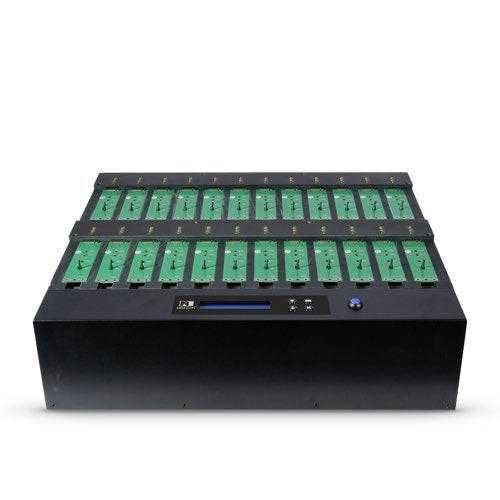

A standalone, FPGA-based duplicator and sanitizer for M.2 PCIe NVMe and M.2 SATA SSDs. Clone, verify, and securely erase NVMe and SATA drives at speeds up to 10.2 GB/min — no PC, no software, no drivers required. Dedicated per-port bandwidth ensures zero speed degradation across all targets, with NIST SP 800-88r1 and DoD 5220.22-M compliant sanitization built in. Available in 1-to-3, 1-to-7, 1-to-11, and 1-to-23 configurations.
Key Features
|
Standalone, FPGA-Based Operation
No PC, operating system, or software required. The embedded FPGA controller eliminates virus and hacking risks while ensuring consistent, repeatable operations via a simple 4-button interface and backlit LCD. |
Speeds Up to 10.2 GB/min (170 MB/sec) High-speed FPGA engine with dedicated per-port bandwidth — no speed degradation regardless of the number of connected targets. Actual throughput depends on the SSD's native read/write capabilities. |
|
Native NVMe & SATA Support Supports PCIe NVMe (Gen 3, Gen 4, Gen 5) and M.2 SATA protocols natively. Compatible with both M Key and B+M Key interfaces. Optional adapter (TB1589) adds traditional SATA support. |
Four Copy Modes System & Files copies only data areas. All Partitions handles HPA/DCO. Whole Device clones bit-by-bit. Percentage copies a user-defined portion of the source. Choose the mode that best fits your workflow. |
|
Built-In Bit-by-Bit Verification Compare function performs a strict bit-by-bit comparison between source and targets. Copy+Compare mode automates both operations sequentially for hands-free, verified duplication. |
Five Sanitization Modes Quick Erase, Full Erase (NIST SP 800-88r1), DoD 3-pass, DoD 3-pass with verification, and Secure Erase (NIST SP 800-88r1) — covering everything from routine reuse to compliance-grade destruction. |
|
All M.2 Form Factors Supported Compatible with every standard M.2 SSD size: 2230, 2242, 2260, 2280, 22110, 3030, 3042, 3060, and 3080. Rubber standoff retention system makes SSD installation quick and tool-free. |
Modular, Serviceable Design M.2 sockets are modular and field-replaceable — reducing downtime and long-term cost of ownership. Firmware is field-upgradeable via SD card or source port. |
|
18 TB+ Capacity Support The embedded controller is designed to support NVMe and SATA devices with capacities exceeding 18 TB, with ongoing updates ensuring compatibility with the latest drives on the market. |
Advanced Security Features Boot password protection and key-lock function restrict unauthorized access. Configurable start-up menu, target tolerance settings, and disk signature management provide granular control for production environments. |
Supported Protocols & Interfaces
The NV-BM S Series natively supports both NVMe and SATA protocols across M.2 form factors, with optional expansion to traditional SATA via adapter.
|
NVMe PCIe Gen 3 / Gen 4 / Gen 5 |
M.2 SATA Native B+M Key support |
M Key PCIe NVMe M.2 |
B+M Key SATA & PCIe M.2 |
Optional: Adapter TB1589 adds support for traditional 2.5" SATA drives, expanding the unit's versatility beyond M.2 form factors.
Copy Modes & Verification
Four duplication modes and a hardware-level verification function cover every cloning scenario — from fast data-only copies to forensic-grade full-device replication.
| Mode | How It Works | Best For |
|---|---|---|
| System & Files (Quick Copy) |
Analyzes the source device's format and copies only the data-occupied areas. Supports FAT16/32/64, NTFS, Ext2/3/4, and HFS/HFS+/HFSX. Significantly reduces duplication time by skipping empty space. | Standard cloning where the source uses a recognized file system and speed is a priority. |
| All Partitions | Copies all defined partitions on the source including the ability to copy or skip HPA, DCO, unknown partitions, and modified formats based on user-configurable settings. | Multi-partition environments, drives with hidden or protected areas, or situations where partition-level control is needed. |
| Whole Device | Copies the entire source device bit-by-bit from the first sector to the last — data, empty space, format tables, unallocated regions, and all sectors without any analysis. | Proprietary or unknown formats, forensic cloning, or when an exact sector-level replica is required. |
| Percentage (%) | Copies a user-specified percentage of the source device's total capacity, starting from sector 0. | Partial cloning scenarios, or when only the beginning portion of a drive is needed. |
| Compare | Performs a strict bit-by-bit comparison between the source and all target devices to verify data integrity after duplication. | Quality assurance and mission-critical workflows where verified accuracy is mandatory. |
| Copy + Compare | Automatically executes the Compare function immediately after duplication completes — one operation, fully verified, no manual intervention. | Production and compliance environments requiring hands-free, verified duplication. |
Tip: Before duplicating, review your Copy Area setting (6.2), GPT Backup Area (6.3), Skip Bad Area Sectors (6.4), and Unknown Format handing (6.6.1) to optimize speed and accuracy for your specific media.
Secure Erase Functions
Five built-in sanitization modes ensure data is permanently and irreversibly destroyed from NVMe and SATA SSDs — from quick index-table clearing to multi-pass DoD-compliant overwrite with verification.
|
INDEX ONLY Erases the device's index table for fast routine clearing. |
NIST 800-88 Overwrites all data on the device, compliant with NIST SP 800-88r1 Clear standards. |
3-PASS DoD Three-pass overwrite compliant with DoD 5220.22-M standards for complete destruction. |
3-PASS+VERIFY DoD 3-pass erase followed by automatic verification that erasure is complete. |
NIST 800-88 Erases non-loadable (non-user-accessible) areas, compliant with NIST SP 800-88r1 Purge standards. |
Note: By default, the source port is disabled for erase operations to protect source data. To enable source-port erasing, navigate to Setup → Advanced → Erase Master (6.6.2) and set to Enabled.
Supported Devices & Formats
M.2 Device Compatibility
| Form Factors | M.2 NGFF: 2230, 2242, 2260, 2280, 22110, 3030, 3042, 3060, 3080 |
| Key Types | M Key (NVMe PCIe) and B+M Key (SATA & PCIe) |
| Protocols | NVMe PCIe Gen 3 / Gen 4 / Gen 5 and M.2 SATA. Traditional SATA via optional adapter (TB1589). |
| Capacity | Supports devices exceeding 18 TB. Ongoing firmware updates ensure compatibility with the latest SSDs. |
File System & Format Support
| System & Files (Quick) | FAT16, FAT32, FAT64 (exFAT), NTFS, Linux Ext2/Ext3/Ext4, Mac HFS/HFS+/HFSX |
| All Partitions | All recognized partitions including HPA, DCO, and unknown partition handling (configurable copy or skip) |
| Whole Device | All formats — including proprietary, unknown, and unrecognized file systems. Supports GPT, MBR, and Advanced Format partition schemes. |
| Operating Systems | Windows, Mac, Linux, and any standalone system. The duplicator operates independently of any host OS. |
Built-In Diagnostic & Management Tools
The NV-BM S Series includes onboard utilities for device diagnostics, firmware management, data integrity checking, and advanced configuration.
| Function | Description |
|---|---|
| Show Device Info | Displays connected device details including model name, capacity, serial number, and firmware version for each port. |
| Read Speed | Measures the read speed of a selected device without modifying its data. Useful for benchmarking and quality control. |
| Write Speed | Measures the write speed of a selected device. Note: this function overwrites existing data on the tested device. |
| CRC64 Checksum | Calculates the CRC64 value of the source device for data integrity verification and audit record-keeping. |
| System Update | Field-upgradeable firmware via rear SD card slot or through the source port. Supports ongoing compatibility with new SSD models. |
| System Info | Displays the duplicator's controller model, firmware version, and machine ID. |
| Boot Password | Password-protects the unit at startup to prevent unauthorized use. |
| Key Lock | Disables the ▲/▼ navigation buttons to prevent accidental menu changes during production runs. Unlock by pressing all four buttons simultaneously for 5 seconds. |
| Target Tolerance | Sets the allowable capacity variance between source and target devices. Options: No Limit, 100% Same, or a custom upper/lower percentage range. |
| Delete Disk Signature | Removes the Windows disk signature from targets after copy so that multiple cloned drives can be connected to a Windows PC simultaneously without conflicts. |
| Clean SSD Before Copy | Optionally wipes target SSDs before duplication to ensure a clean slate. Default: disabled. |
| GPT Backup Area | When disabled, allows copying from a larger-capacity source to a smaller-capacity target by skipping the backup GPT partition at the end of the drive. |
