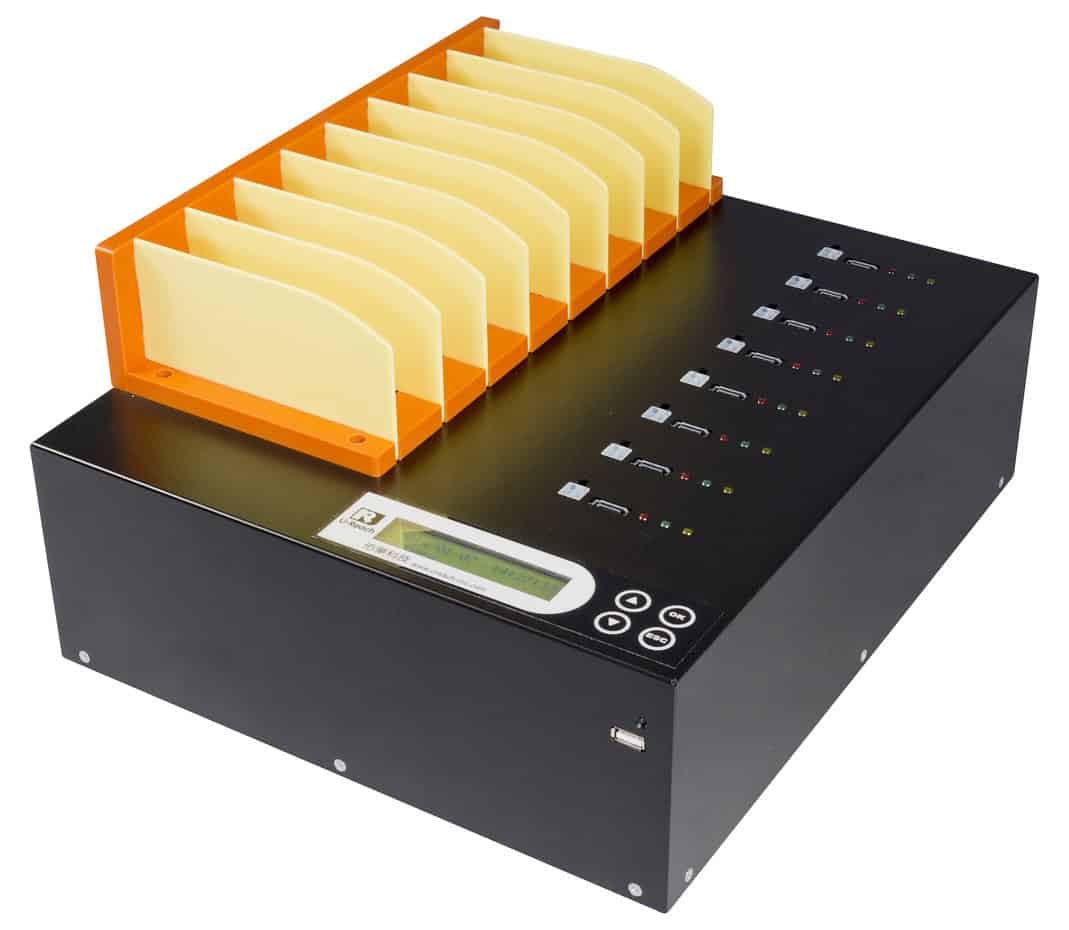

  • MT Series 2.5″/3.5″ SATA/IDE HDD/SSD Duplicator and Sanitizer image 1 product photo

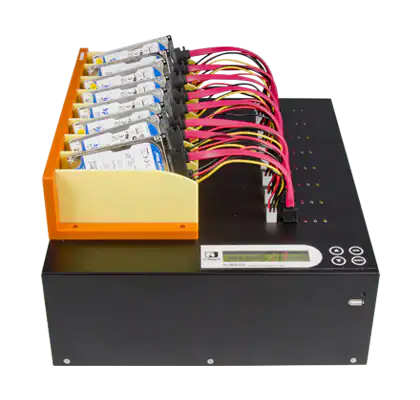

  • MT Series 2.5″/3.5″ SATA/IDE HDD/SSD Duplicator and Sanitizer image 2 product photo

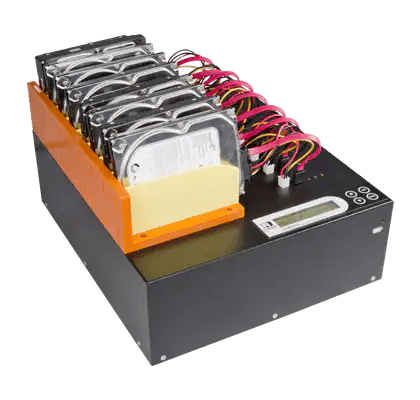

  • MT Series 2.5″/3.5″ SATA/IDE HDD/SSD Duplicator and Sanitizer image 3 product photo

MT Series 2.5″/3.5″ SATA/IDE HDD/SSD Duplicator and Sanitizer

  • The MT series HDD/SSD Duplicator speed transfers up to 9 GB per minute.
  • The MT High Speed series HDD/SSD Duplicator speed transfers up to 18 GB per minute.
  • The duplicators are available in 7, 15, and 23 Targets
  • Supports multiple SATA I/II/III and 4Kn HDD interfaces with its open platform design.
  • Supports bit-by-bit copy for all formats
  • Data Sanitization: quick erase, full erase, DoD erase, secure erase and US Army 380-19 erase.
$2,800.00 CAD
$2,800.00 CAD
SKU: URCAMT
MT Series 2.5″/3.5″ SATA/IDE HDD/SSD Duplicator and Sanitizer image 1 product photo
$2,800.00 CAD
$2,800.00 CAD

The MT series HDD/SSD Duplicator - available in High Speed For data replication and sanitization, U-Reach HDD/SSD duplicators offer a robust, efficient, and flexible solution. The variety of modes available ensures that users can select the appropriate function based on their specific needs.

Features

    • Info rockets through our system at a whopping pace, touching 9 GB/min for the MT Series and 18 GB/min for the MT High Speed series HDD/SSD Duplicator.
    • We’ve designed our tech to handle a variety of systems. It's ready to support Windows (with FAT16/32/64, NTFS), Linux (ext2/ext3/ext4/LVM), and Mac (HFS, HFS+, HFSX).
    • Worried about lingering data? Our tools come with multiple data erasure options: a quick clean, a total wipe, a secure removal, or even a Department of Defense standard erase.
    • Our versatile platform design embraces various types of storage drives, keeping the door wide open for multiple HDD/SSD interfaces. We offer real-time supervision of your PC activity, keeping you in the know at all times.
    • We've got your hard drives covered too - from 2.5", 3.5" SATA HDD, SSD, to IDE HDD with our IDE to SATA adapter (TB1529 model included in the package).
    • Our system meticulously logs task details, providing crucial insights for optimizing your production management.

Data Areas and Copying
Visualizing the process, the areas containing data are conveniently marked in blue, while the areas being duplicated are shown in red. It's a process as seamless as it is transparent, making the most of technological advancements.

The Role of the Hard Drive's Controller Chip
The total time required for duplication is contingent upon the speed supported by the hard drive's controller chip. This means that every operation is performed at the fastest possible pace without compromising data integrity.

Benefits for Manufacturers
Reaching a top speed of 9GB/min across all HDDs simultaneously, U-Reach SATA HDD duplicators make no compromise on speed, regardless of the number of targets. This aspect makes the duplicator a must-have tool for manufacturers requiring high-speed, efficient data duplication.

High Compatibility

    • In Quick Copy mode, the duplicators support a wide variety of file systems including Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats. This compatibility is the secret sauce that ensures smooth operation, irrespective of the operating system in use.
    • Whole Media Copy mode, on the other hand, supports all system and proprietary formats. This mode is ideal for those seeking complete data replication.
    • Regardless of the brand or the maximum capacity of the hard drive, U-Reach HDD/SSD duplicators are designed to offer flawless support, making them the ideal choice for tech enthusiasts and professionals alike.
    • Designed to support the highest capacity available on the market.
    • U-Reach HDD/SSD duplicators extend their support to both MBR and GPT partitioning, thus covering all bases in terms of data storage architecture.

Sanitization Methods

    • Quick Erase: erases the HDD index table in just a few seconds, ensuring swift data sanitization.
    • Full Erase: eliminates all data from the HDD, providing a thorough cleanup of your storage devices.
    • DoD Erase: complies with U.S. Department of Defense erasure standards, delivering a secure sanitization method that aligns with top-tier data protection protocols.
    • Secure Erase: is a method endorsed by the National Institute of Standards and Technology 800-88 for effectively purging hard drives. Almost all modern SATA HDDs support this method.

Auto Rejection of Slow Devices
One of the more exceptional features of the U-Reach duplicators is the auto-rejection of slow devices. This feature is designed to prevent issues that could affect the duplication or sanitizing process. Users can set a minimum writing speed threshold, thereby ensuring a streamlined and efficient workflow.

Verification of Data Integrity
Although U-Reach duplicators offer straightforward copying, they also place a high emphasis on data verification. This is done through a bit-by-bit process, ensuring that the copied data is accurate and reducing the risk of customer recalls.

Skipping Bad Sectors
U-Reach duplicators provide the option to skip bad sectors from the source device. This function can be customized, allowing users to select the number of bad sectors to skip, ranging from 0 to unlimited.

U-Reach HDD/SSD duplicators, with their wide range of functionalities and user-friendly features, have set a high benchmark in the field of data duplication and sanitization. By offering high-speed operation, immense compatibility, and various sanitization methods, these tools cater to a plethora of user needs, making them indispensable for data management tasks.

General:
Model: MT Series:

MT High Speed series:		 MT800G, MT1600G, MT2400G

MT800H, MT1600H, MT2400H
Features:
Operating Type: Stand-alone, FPGA-based operation (Non PC-based)
Controller Design: Embedded controller is designed to support capacities over 18TB+.
Constant improvement supports latest marke-available devices.
Event Log Management:
  • Records: operating durations, individual port copy progressions, connected device models, capacities, serial numbers, and PASS or FAIL results.
  • Device writing/reading speeds are recorded.
  • Log report files are generated through the front USB port and are saved to USB devices.
Real Time PC Monitoring: View live status for: writing/reading speeds, total capacity, current function progress per port.
Read Only Source Port: There are no options to disable this built-in feature and is integrated with all U-Reach duplicators.
Modular Cabling Design: Modular-designed ports effectively reduce downtime and is cost-effective for long-term ownership
Product Functions:
4 Copy Modes: Quick Copy (Data & System):Supports Windows, Mac, and Linux.
All Partitions: Users can skip HPA or unknown partitions.
Whole Device: Copies bit-by-bit from the master device
Percentage Copy: Users can set percentages of capacity to be copied
Compare (Verification): Bit-by-bit data comparison from the source device to target device(s).
7 Sanitization Modes:
  • Quick Erase
  • Full Erase (NIST 800-88)
  • Secure Erase (NIST 800-88)
  • DoD3 Pass (DoD 5220.22-M)
  • DoD3 Pass+Compare (DoD 5220.22-M)
  • DoD7 Pass [DoD 5220.22-M(ECE)]
  • Enhanced Secure Erase
Bad Sector Scan: Scans device for any bad sectors by reading and writing.
Thorough Sector Scan: Scans device for any bad sectors by reading and writing two times.
Skip Bad Sectors: Choose the number of bad sectors to skip.
Minimum Speed: Disable or set minimum threshold speed to drop the slowest device.
Check Source Minimum Speed: Allows user to enable or disable the source speed check
Unknown Format: Choose to copy or skip unknown formats.
Erase Source Port: Enable or disable source port from being erased
Device Power-up: Choose time to wait for the device to power up prior to copy, erase, etc.
Device Power-down: Choose time to wait for the device to power down prior to disconnection.
Scroll Lock: Disable or enable ▲ and ▼ buttons on the control panel.
HPA Copy Modes: Allows user to choose various HPA replication methods
Clear HPA at Erase: Keep or clear HPA settings during sanitization process.
Language: English or Japanese.
Transfer Modes: Allows user to select the transfer rate.
Log Manager: Manage and export log reports.
Compatibilities:
Compatible Devices: 1.8"/2.5"/3.5" eSATA/SATA HDDs and SDDs
Supported Formats: 2.5"/3.5” IDE, iVDR, mSATA SSD, MicroSATA, M.2 (NGFF), CFast, and Panasonic CF-29 through CF-74.
Supported Formats:
  • Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).
  • Whole Device Copy Function: All Formats, including proprietary formats.
  • GPT, MBR, and Advanced Formats.
Supported O/S: All (Windows, Mac, Linux, and other proprietary systems).
Hardware
Specification:
LCD Display: Backlit Monochrome LCD Display
LEDs: 3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel: 4 Push Buttons(▲, ▼, OK, ESC)
Power Requirements: Universal Power: 115VAC or 230VAC, 50/60Hz
Operational Temperature: 5°C ~ 45°C (41°F ~ 113°F)
Non-operational Temperature: -20°C ~ 85°C (-4°F ~ 185°F)
Humidity: Operating: 20% ~ 80%, non-condensing
Non-operating: 5% to 95%, non-condensing
Product Dimensions:
  • MT600G – 419.1 mm x 419.1 mm x 279.4 mm (16.5 in. x 16.5 in. x 11 in.)
  • MT1600G – 762 mm x 508 mm x 381 mm (30 in. x 20 in. x 15 in.)
  • MT2600G – 762 mm x 660.4 mm x 457.2 mm (30 in. x 26 in. x 18 in.)
Product Weight:
  • MT600G – 5.67 kg (15.0 lbs.)
  • MT1600G – 14.06 kg (31.0 lbs.)
  • MT2600G – 17.69 kg (39.0 lbs.)
Certifications: FCC, CE, RoHS

Frequently Asked Questions

How does system and files copy differ from whole media copy modes?

With the pace of a cheetah and the precision of a Swiss watch, our hard drive duplicators support all brand types. They perform a bit-by-bit copy at impressive speeds, finishing a 1TB hard drive in a mere 1-3 hours, depending on your specific HDD and duplicator model.

Our duplicators also champion the "data-only quick copy", letting you leapfrog empty HDD sectors and save precious time.

Beyond the primary copy function, our duplicators come armed with additional capabilities such as the erase function and DOD erase for secure data management.

How long does the process take for duplicating 1TB using HDD duplicators?

  • Carry series: Traveling at a remarkable speed of up to 9GB/min, 1TB duplication takes approximately 2.5-3 hours.
  • Industrial IT/MT Standard Series: Same pace as the Carry series with 1TB duplication taking roughly 2~2.5 hours.
  • High-speed Series: Double the pace, with speeds reaching up to 18GB/min, your 1TB duplication is finished within the hour
  • Daisy-Chain Super 1 Tower Series: With copy speeds at up to 9GB/min, 1TB duplication will take around 2.5-3 hours.

How do HDD duplicators and ghost software differ?

GHOST requires installation on your PC and can only handle 2 HDDs concurrently. Its operation speed is subject to the PC's hardware capabilities.

In contrast, our HDD duplicators, operating independently of your PC, back-up large volumes of HDDs simultaneously without any speed decline.

Is it possible to duplicate HDDs of varying capacities?

Yes, HDDs with different capacities can be copied. However, you should consider the copy mode in use.

  • Quick copy analyses whether data duplication is possible according to its capacity and location.
  • When copying in NTFS format, the target HDD's capacity must exceed the source by at least 1MB.

Can SSD HDD be copied?

Absolutely. All our HDD/SSD duplicators support SSD copying.

Can IDE HDD be copied?

Yes, several of our series including the IT, ITS, MT, MTC, MTS, and carry mini series support IDE HDD copying with a SATA-IDE converter.

Why would a copy operation fail?

Several reasons could cause a copy operation to fail:

  1. If the source HDD's data capacity exceeds that of the target HDD.
  2. For NTFS copying, the target HDD must have a capacity greater than the source HDD by at least 1MB.
  3. Check for bad sectors in either the target or source HDD if the copy operation stops or fails.
  4. If you're unable to determine the cause, please provide us with detailed information about the duplicator and HDDs, along with a description of the problem. We'll assist you as soon as possible.

Can encrypted data be copied?

Given the multitude of encryption methods available, you might need to conduct tests to ascertain whether your encrypted data can be copied. We recommend following the below steps:

**NOTE:** Ensure the target drive's capacity is at least equal to that of the source drive before starting the test.
