MiniSAS SAS Series 2.5″/3.5″ SATA/SAS HDD/SSD Duplicator and Sanitizer 1 to 1

Supports both SAS & SATA I/II/III and 4Kn HDD interfaces up to 18 GB/min transfer speeds.
Auto skip up to 6000 error sectors of the HDD
Auto power control protects your HDD (HDD is only powered during operation)
Supports 2.5″ and 3.5″ SATA, ZIF HDD, SSD, SAS

$999.00 CAD

~~$0.00 CAD~~ $999.00 CAD

Request a Quote

SKU: URCAM SAS MS118

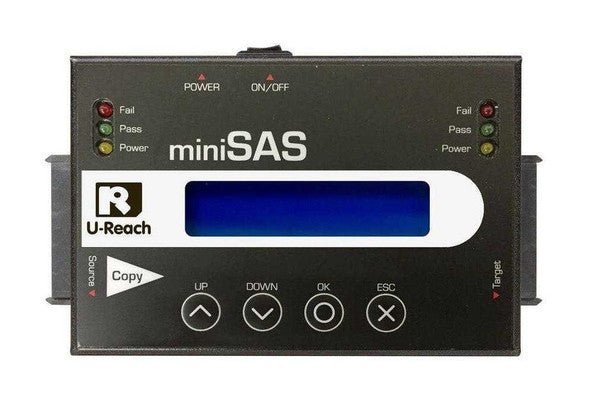

MiniSAS SAS Series 2.5″/3.5″ SATA/SAS HDD/SSD Duplicator and Sanitizer 1 to 1 image 1 product photo

$999.00 CAD

~~$0.00 CAD~~ $999.00 CAD

Unleash the Power of Seamless HDD Duplication with the MiniSAS 1 to 1 SAS/SATA Duplicator and Sanitizer

The MiniSAS Series SATA/SAS HDD/SSD Duplicator and Sanitizer 1-1 offers a comprehensive solution for all your HDD duplication needs. With its remarkable features such as 1 to 1 copy support, high-speed duplication, auto-skip bad sectors, auto power control, and compatibility with various interfaces, it stands out as a reliable and efficient choice. Whether you're a professional in the field or an individual looking to safeguard your data, our HDD duplicator and Sanitizer offers a seamless duplication experience, saving you time, effort, and potential data loss.

Don't compromise on the security and efficiency of your HDD duplication tasks. Experience the power of our advanced HDD duplicator and take your data duplication to new heights!

Features

- Ultra-High Speed: High copy speed for duplication and data comparison. Speed Transfers up to 18GB/min.
- Support Various Interfaces: Support 2.5" and 3.5" SATA HDD, IDE HDD and SSD
- Quick Copy Mode: Systems and Files, All Partitions, Whole HDD, and Percentage Copy.
- 6 Erase Methods: Quick Erase, Full Erase, DoD Erase, 7 - Pass Overwrite, Secure Erase and Enhanced Secure Erase.
- Bad Sector Check: Auto detect and shows the bad sector quantity.
- Automatic Power Control System: Protect the HDD from damage during hot removal from the duplicator.
- Portable Design: Light weight for easy carry.Auto power control to protects your HDD.(HDD only powered during operation.)

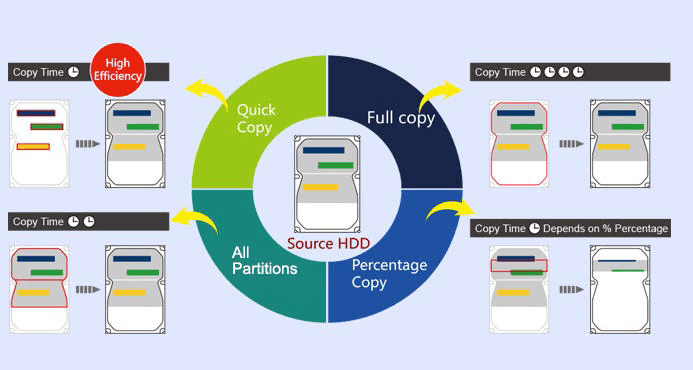

4 Different Copy Modes:

- Quick Copy: Copy data and system only. It supports various file systems, including MBR, GPT, NTFS, Linux (ext2/3/4), Mac (HFS, HFS+, HFSX), and FAT16/32/64 formats.
- Whole HDD: Bit-for-bit copy whole HDD. This mode is particularly useful when you want to replicate an entire system or perform forensic analysis.
- ALL Partitions: Copy all defined partitions and skip HPA or unknown partitions. This mode ensures that every partition, including the operating system and data partitions, is replicated accurately.
- Device Percentage: User can set percentage of capacity to be copied.

Copy Speed that Leaves Competitors in the Dust

When it comes to data duplication, speed is of the essence. Our HDD duplicator boasts an impressive copy speed of up to 18 GB per minute. Say goodbye to long waiting times and maximize your productivity with lightning-fast duplication. Whether you're duplicating large files or entire hard drives, our HDD duplicator will save you precious time.

Auto Skip Bad Sectors for Hassle-Free Duplication

Dealing with bad sectors on your HDD can be a nightmare, causing errors and data loss during the duplication process. Fortunately, our HDD duplicator is equipped with an intelligent auto-skip feature that can bypass an unlimited number of bad sectors. This means you can enjoy seamless duplication without worrying about corrupt files or wasted time.

Auto Power Control: Preserve Your HDD's Lifespan

Protecting your HDD is essential for its longevity. Our HDD duplicator comes with an auto power control feature that ensures your HDD is only powered during operation. This intelligent power management system not only safeguards your HDD but also conserves energy, making it an eco-friendly choice.

Versatility at its Finest: Supports Various HDD Types

No matter the type of HDD you're working with, our duplicator has got you covered. It supports a wide range of HDD formats, including 2.5" and 3.5" SATA HDDs, ZIF HDDs, SSDs, and SAS drives. Whether you're dealing with older SATA interfaces or the latest 4Kn HDDs, our duplicator is compatible with SATA I/II/III and 4Kn HDDs, ensuring versatility and compatibility.

Sanitization Functions:

Erase Functionality Compliant with NIST SP 800-88r1 and DoD 5220-M Standards Secure erase functions wipe drive contents within seconds

Supporting Various Interfaces for Seamless Connectivity

Our HDD duplicator goes above and beyond in terms of compatibility. It supports 2.5" and 3.5" SATA HDDs and SSDs without the need for an adapter. Additionally, it offers compatibility with other interfaces when combined with an additional adapter, including mSATA, SATA DOM, eSATA, iVDR, M.2 (NGFF), and MicroSATA. No matter the interface, our duplicator ensures hassle-free connectivity and duplication.

General:
Model:	SAS-MS118
Target:	1
Specifications:
Maximum Transfer Speed:	18GB/min. Actual performance is dependent on HDD transfer speeds.
Capacity:	Supports the latest market available capacity
Operation Type:	Stand-alone, FPGA-based operation (Non PC-based)
Supported Languages:	English or Japanese
LCD Display:	Backlit Monochrome LCD Display
LEDs:	3 LED (Red/Green/Yellow) Indicators per Port
Control Panel:	4 push Buttons (Up, Down, OK, ESC)
Product Functions:
Copy Modes:	Quick Copy (Systems & Files Copy), All Partition Copy,Whole Device Copy, Percentage Copy
Compare Function:	Bit-by-bit data comparison
Sanitization Modes:	Quick Erase, Full Erase (NIST SP 800-88r1), DoD Erase, and Secure Erase
Compatibilities:
Compatible Devices:	1.8"/2.5"/3.5" SATA/SAS HDDs and SDDs
Compatible Devices (with required adapter):	2.5"/3.5” IDE, mSATA SSD, MicroSATA, eSATA, iVDR
Supported Formats:	Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux(Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX). Whole Device Function: All Formats, including proprietary formats GPT, MBR, and Advanced Formats
Supported O/S:	All (Windows, Mac, Linux, and other stand-alone systems)
Hardware Specification:
Power Supply:	Input: 100V-240V ~ 50-60 Hz Output: 12V 7A
Temperature:	Working: 5°C ~ 45°C (41°F ~ 113°F) Storage: -20°C ~ 85°C (-4°F ~ 185°F)
Humidity:	Working: 20% ~ 80% Storage: 5% to 95%
Product Dimensions:	9 in. x 7.5 in. x 3 in.
Product Weight:	3 lbs.
Certifications:	FCC, CE, RoHS

Frequently Asked Questions

What are the differences between system and files copy and whole media copy modes?

HDD duplicators support all brands of HDDs and perform bit-by-bit copying at high speeds, typically taking 1-3 hours to duplicate a 1TB HDD (actual speeds may vary based on HDD and duplicator models).
The HDD duplicators also offer a "data-only quick copy" feature, which allows users to save time by skipping empty HDD sectors.
In addition to the copy function, the duplicators provide additional features such as erase and DOD erase.

How long does it take for the HDD duplicators to complete the duplication of a 1TB HDD?

Carry SAS series: Copy speeds up to 18GB/min. Duplicating a 1TB HDD takes approximately 1 hour.
Industrial ITS/MTS Standard Series: Copy speeds up to 18GB/min. Duplicating a 1TB HDD takes approximately 1 hour.

What is the difference between HDD duplicators and ghost software?

GHOST:
Requires installation on the PC and can only work with 2 HDDs simultaneously.
The operation speed depends on the computer's CPU, RAM, BUS, SATA/IDE, and HDD models.
HDD duplicators:
Capable of simultaneously backing up large quantities of HDDs without any decline in speed.

Can I duplicate HDDs with different capacities?

Yes, you can copy HDDs with different capacities. However, it is important to consider the copy mode you choose:

If you select the quick copy mode, the duplicator will analyze whether the data can be duplicated based on the capacity and location.
When copying with the NTFS format, the target HDD's capacity must be at least 1MB larger than the source HDD.

Can I copy SSD HDDs?

Yes, all HDD/SSD duplicators support copying SSDs.

What are the possible reasons for a copy to fail?

There are several possible reasons for a copy to fail:

Ensure that the data capacity of the source HDD does not exceed the capacity of the target HDD.
When copying with NTFS, make sure the target HDD's capacity is at least 1MB larger than the source HDD.
If the copy stops or fails during the process, check for any bad sectors on the target or source HDD.
If you cannot identify the reason, provide detailed information about the operation process, including the model number and version, HDD brand, capacity, data size, format, and partition of both the source and target HDD. Fill out the support form from the website for further assistance.

Why is the copying process slow?

Several factors can cause the copying process to slow down:

The speed limitation of the HDD, which can be checked on the PC.
Verify if the HDD is placed horizontally or vertically, as any movement can affect the reading or writing speed due to the HDD's design.
If you are copying multiple HDDs simultaneously, check if the issue is specific to certain targets. It might indicate damage to the connector module caused by usage. Contact your local seller for a replacement connector module or mobile rack.

Can I copy encrypted data?

As encryption methods vary (e.g., software or hardware encryption), it may require actual testing to determine compatibility. Follow these recommended steps for testing:

Note: Ensure that the capacity of the target drive is equal to or greater than the capacity of the source drive before testing.

Step 1: Perform Data Area Copy on the Duplicator

Green light: The copied device can be used normally (OK).
Red light at the beginning of replication: The machine cannot detect the device (FAIL)
Green light: The copy is finished, but the device cannot be used normally (Proceed to Step 2).
Red light during copying or near completion: Proceed to Step 2.

Step 2: Perform Whole Media Copy on the Duplicator

Green light: The copied device can be used normally (OK)
Green light: The copied device cannot be used normally (FAIL).

If the device cannot be used normally after performing the Whole Media Copy, it indicates that the encryption method may be restricted to specific device serial numbers or model information, rendering the copied device unusable.
