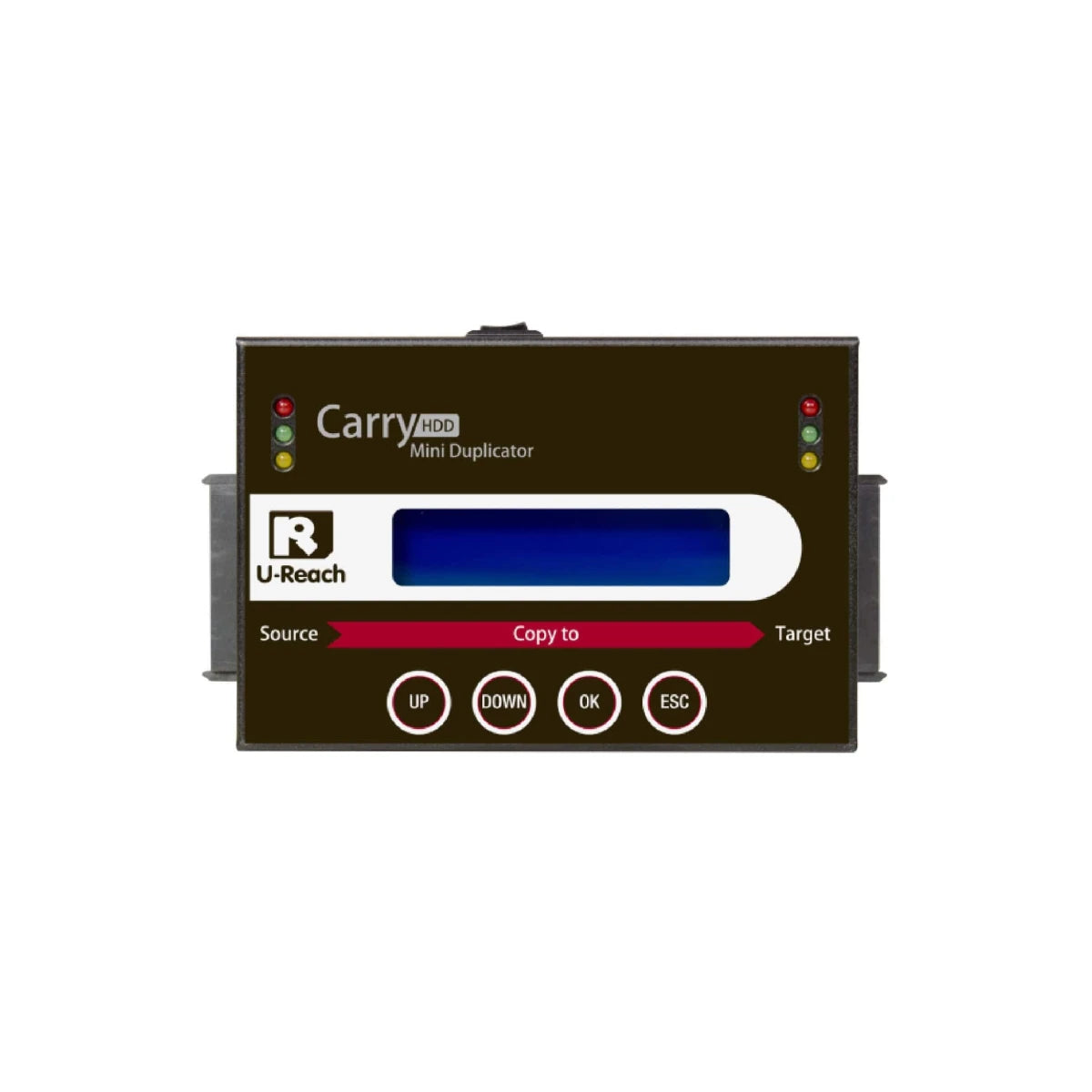

Mini SATA Series - SATA & IDE HDD/SSD Duplicator and Sanitizer

  • Available in two models: PRO118 - Supports HDD 1 to 1 copy.
    PRO218 - Supports HDD 1 to 2 copy.
  • Copy speed of 9 GB/min.
  • Auto skip up to 6000 error sectors of the HDD.
  • Supports 2.5", 3.5" SATA HDD, SSD and IDE HDD via IDE_SATA convertor (1 piece IDE to SATA adapter-TB1529 included)
$245.00 CAD
$406.00 CAD $245.00 CAD
Save $161.00 CAD
SKU: URCAPRO118
Mini SATA Series - SATA & IDE HDD/SSD Duplicator and Sanitizer image 1 product photo
$245.00 CAD
$406.00 CAD $245.00 CAD

The PRO118 SATA IDE HDD/SSD Duplicators offer high-speed copying performance with speeds of up to 9 GB per minute, allowing you to quickly and efficiently duplicate your HDDs and SSDs. Whether you need to clone an operating system, replicate important files, or create backups, this device delivers impressive copying speeds, saving you valuable time.

Available in two models: PRO118 - Supports HDD 1 to 1 copy. PRO218 - Supports HDD 1 to 2 copy Copy speed of 9 GB/min. Auto skip up to 6000 error sectors of the HDD Auto power control protects your HDD (HDD is only powered during operation) Supports 2.5", 3.5" SATA HDD, SSD and IDE HDD via IDE Adapter (1 piece IDE to SATA adapter-TB1529 included) Supports 3 different duplication modes: Quick Copy (System & files), All partitions and Whole HDD The Quick Copy mode supports: Linux (EXT2/EXT3/EXT4), NTFS, FAT16/32. GPT and Dynamic HDD Also, it copies only the data and systems area, which highly increases the copy efficiency. Auto detects and shows the bad sector quality Lightweight portable design



Multiple Duplication Modes

With the PRO118, you have the flexibility to choose from four different duplication modes based on your specific requirements:

    • The Quick Copy mode is designed for rapid copying of data and system files and supports various file system formats, including Linux (EXT2/EXT3/EXT4), Windows (NTFS/FAT16/FAT32/FAT64), and Mac (HFS/HFS+/HFX).
    • The All Partitions mode enables the duplication of all defined partitions while skipping HPA or unknown partitions.
    • The Percentage mode allows you to set the percentage of capacity to be copied, providing customized duplication.
    • Finally, the Whole HDD mode performs a bit-for-bit copy of the entire HDD, ensuring a complete replication.



12 Times Faster on Quick Copy
When duplicating HDDs, encountering bad sectors can be a common challenge. The PRO118 Duplicator and Sanitizer features an auto skip feature that can bypass an unlimited number of bad sectors on the HDD, ensuring a smooth and uninterrupted duplication process. This feature saves you time and effort by automatically skipping blank areas, this reduces wasted time and increases the work efficiency. Quick copy supports MBR, GPT, NTFS, Linux (ext2/3/4), Mac (HFS, HFS+, HFSX) and FAT16/32/64 formats.



LED Indicators for Real-Time Status
Each port on the PRO118 is equipped with three-color LED indicators to provide real-time status updates. The red indicator signifies a fail, the green indicator represents a pass or successful operation, and the yellow indicator indicates that the port is powered. These LED indicators make it easy to monitor the progress and status of your duplication tasks at a glance.



Portable and Versatile Design
The PRO118 features a lightweight and portable design, making it easy to carry and suitable for various purposes. Whether you're a small office/home office (SOHO) user, an IT professional, involved in forensic work, or need personal use, this device provides a compact and versatile solution for your data duplication and sanitization needs.

Supports for Various Interfaces: In addition to its compatibility with 2.5" and 3.5" SATA HDDs and SSDs without the need for an adapter, the PRO118 also supports various interfaces with the use of additional adapters. You can connect and duplicate IDE HDDs, mSATA, SATA DOM, eSATA, iVDR, M.2(NGFF), and MicroSATA drives with ease, expanding the device's versatility and capabilities.

General:
Model: PRO118:

PRO218:		 1:1 target

1:2 targets
Features:
Operating Type: Stand-alone, FPGA-based operation (Non PC-based)
Controller Design: Embedded controller is designed to support capacities over 18TB+.
Constant improvement supports latest marke-available devices.
Read Only Source Port: There are no options to disable this built-in feature and is integrated with all U-Reach duplicators.
Bandwidth Performance:
  • Speed transfers of up to 7.2GB/min. (120MB/sec.)
  • Dedicated bandwidth enables high-volume replications without speed degradation.
Product Functions:
4 Copy Modes:
  • Quick Copy (Data & System):Supports Windows, Mac, and Linux.
  • All Partitions: Users can skip HPA or unknown partitions.
  • Whole Device: Copies bit-by-bit from the master device
  • Percentage Copy: Users can set percentages of capacity to be copied
Compare (Verification): Bit-by-bit data comparison from the source device to target device(s).
5 Sanitization Modes:
  • Quick Erase
  • Full Erase (NIST 800-88)
  • Secure Erase (NIST 800-88)
  • DoD3 Pass (DoD 5220.22-M)
  • DoD3 Pass+Compare (DoD 5220.22-M)
Skip Bad Sectors: Choose the number of bad sectors to skip.
Unknown Format: Choose to copy or skip unknown formats.
Erase Source Port: Enable or disable source port from being erased
Device Power-up: Choose time to wait for the device to power up prior to copy, erase, etc.
Device Power-down: Choose time to wait for the device to power down prior to disconnection.
Language: English or Japanese.
Transfer Modes: Allows user to select the transfer rate.
Compatibilities:
Compatible Devices: 1.8"/2.5"/3.5" eSATA/SATA HDDs and SDDs
Compatible Devices
(Requires Optional Adapters):		 1.8" ZIF HDD/SSD, 2.5"/3.5” IDE, iVDR, mSATA SSD, MicroSATA, M.2 (NGFF), CFast, and Panasonic CF-29 through CF-74.
Supported Formats:
  • Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).
  • Whole Device Copy Function: All Formats, including proprietary formats.
  • GPT, MBR, and Advanced Formats.
Supported O/S: All (Windows, Mac, Linux, and other proprietary systems).
Hardware
Specification:
LCD Display: Backlit Monochrome LCD Display
LEDs: 3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel: 4 Push Buttons(▲, ▼, OK, ESC)
Power Requirements:
  • Power Adapter Input: 100-240VAC / 47-63Hz / 1.4A Max.
  • Power Adapter Output: 12VDC / 5A
Operational Temperature: 0°C ~ 60°C (32°F ~ 140°F)
Non-operational Temperature: -20°C ~ 85°C (-4°F ~ 185°F)
Humidity: Operating: 20% ~ 80%, non-condensing
Non-operating: 5% to 95%, non-condensing
Product Dimensions:
  • PRO118 – 228.6 mm x 190.5 mm x 3 mm (9 in. x 7.5 in. x 3 in.)
  • PRO218 – 228.6 mm x 190.5 mm x 3 mm (9 in. x 7.5 in. x 3 in.)
Product Weight:
  • PRO118 – 1.36 kg (3.0 lbs.)
  • PRO218 – 1.36 kg (3.0 lbs.)
Certifications: FCC, CE, RoHS and REACH
