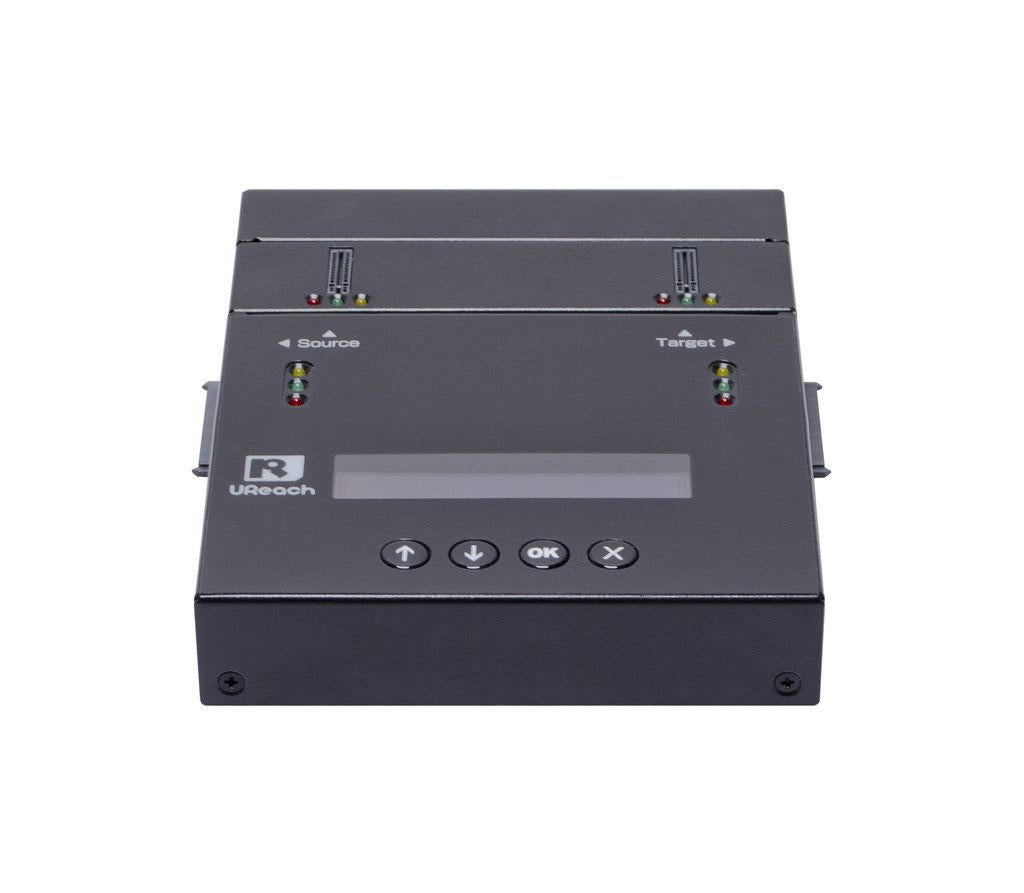

Mini M.2 NVMe/SATA Duplicator and Sanitizer 1-1

  • Speed Transfers up to 24 GB per minute
  • Open platform design supports NVMe (Gen 3 & Gen 4 & Gen 5)
    and SATA protocols.
  • Data Sanitization: Quick Erase, Full Erase, DoD Erase, and DoD Erase + Compare.
  • Supports M key and B+M key for all M.2 PCIe, M.2 SATA devices, SATA HDD/SSD devices, mSATA devices, and IDE devices.
$1,800.00 CAD
$1,800.00 CAD
SKU: URCANVS200
Mini M.2 NVMe/SATA Duplicator and Sanitizer 1-1 - U-Reach Canada
$1,800.00 CAD
$1,800.00 CAD

The M.2 NVMe SATA IDE Duplicator and Sanitizer 1-1 - NVS200 is a professional duplicator designed for small-volume users who require efficient and reliable data duplication. With native support for NVMe and SATA protocols, this duplicator enables cross-signal and cross-interface duplication, providing enhanced compatibility and flexibility.

Features:

  • Speed transfers up to 24 GB per minute.
  • Systems & files copy mode supports Windows(FAT16/32/64, NTFS), Linux(ext2/ext3/ext4), and Mac(HFS, HFS+, HFSX).
  • Data Sanitization: Quick Erase, Full Erase, DoD Erase, and DoD Erase + Compare.
  • Open platform design supports NVMe (Gen 3 & Gen 4 & Gen 5) and SATA protocols.
  • Supports 1-1 cross-interface copy.
  • Supports M key and B+M key for all M.2 PCIe, M.2 SATA devices, SATA HDD/SSD devices, mSATA devices, and IDE devices.



The NVS200 adopts a high-level FPGA closed platform design, ensuring a secure environment for data duplication. This design eliminates the possibility of virus infections, making it a reliable choice for sensitive data duplication tasks.



Easy Plug and Copy Operation

The U-Reach PCIe duplicators, including the NVS200, offer a user-friendly Plug and Copy operation mode. With just three simple steps—power on, plug in, and press OK—the duplication process is initiated. This intuitive interface makes the NVS200 accessible to users with varying levels of technical expertise.



Multiple Copy Modes for Versatile Duplication

The NVS200 provides four copy modes to meet different duplication requirements:

    1. Quick Smart Copy: This mode copies data while skipping blank areas, ensuring efficient use of storage space. It supports various file system formats, including Windows (FAT16/32/64), Linux (ext2/ext3/ext4), and Mac (HFS, HFS+, HFSX).
    2. All Partitions Copy: In this mode, all partitions and data on the source device are copied to the target device, ensuring a complete duplication of the original data structure.
    3. Percentage Copy: This mode allows users to specify the percentage of data to be copied from the source device to the target device. It provides flexibility when dealing with large data sets.
    4. Whole Copy: The whole media copy mode supports all system and proprietary formats, providing a comprehensive duplication solution for various types of data.



No Waiting Time Required

One of the key advantages of the NVS200 is its ability to start the next round of duplication immediately after completing the previous round. There is no waiting time or need to restart the machine, ensuring maximum productivity and efficiency.



Native Support for NVMe and SATA Protocols

The NVS200 utilizes an M.2 interface with native NVMe/SATA protocols, eliminating the need for converter chips. This direct transfer of data enhances compatibility and ensures smooth and reliable duplication.



FPGA-based Platform for Seamless Duplication

The NVS200 is built on an industrial-grade FPGA (Field-Programmable Gate Array) platform. This design not only facilitates cross-interface and cross-protocol duplication but also eliminates the need to restart the system after each round of duplication. The FPGA-based platform ensures seamless and uninterrupted duplication processes.



Note: When performing cross-protocol duplication, it is recommended to use a data disk. For duplicating an operating system, it is advised to use the same protocol device to ensure proper booting into the operating system.



Ｍ.2 & SATA Cross-interface Mode

The cross-interface design of the NVS200 allows for direct copying on the duplicator without the need to install drivers or restart the system, even when using different interface devices. This feature provides convenience and flexibility, catering to the needs of customers with various types of devices.



High Compatibility for Diverse Data Formats

The NVS200 offers high compatibility with various data formats, making it suitable for a wide range of applications. The quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX) formats. Additionally, the whole media copy mode supports all system and proprietary formats, ensuring comprehensive duplication capabilities.

The duplicator is designed to support 18TB+ capacities, allowing for duplication of large data sets. It is compatible with both MBR and GPT partitioning, providing flexibility for different partitioning schemes.



Dual Data Verification: Compare + CRC

The NVS200 offers dual data verification capabilities to ensure the accuracy and integrity of the duplicated data. In addition to the standard bit-to-bit comparison function, it utilizes the CRC (Cyclic Redundancy Check) international calculation standard. This standard confirms the correctness of the data and verifies whether the source data is accurate. Users only need to confirm the CRC value at the end of the copy to ensure the accuracy of the duplicated data.

General:
Model: NVS200 Target: 1
Features:
Operating Type: Stand-alone, FPGA-based operation (Non PC-based)
Controller Design: Embedded controller is designed to support capacities over 18TB+.
Constant improvement supports latest make-available devices.
Protocol Supported: Supports Native NVMe protocol.
Hot Swap Supported:
 Supports hot swapping of devices.
Bandwidth Performance: Peak transfer speeds up to 24GB/min. (400MB/sec.)
Dedicated bandwidth enables high-volume replications without speed degredation.
Read Only Source Port: There are no options to disable this built-in feature and is integrated with all U-Reach duplicators.
Modular Port Design: Modular ports are replaced quickly, which effectively reduce downtime and is cost-effective for long-term ownership
Functions:
4 Copy Modes: Quick Copy (System & Files), All Partition Copy  Whole Device Copy, Percentage Copy
Compare (Verification): Bit-by-bit data comparison
4 Sanitization Modes:
  • Quick Erase
  • Full Erase (NIST 800-88)
  • DoD Erase (DoD 5220.22-M)
  • Secure Erase (NIST 800-88)
Compatibilities:
Compatible Devices:
  • NGFF (M.2): 2230, 2242, 2260, 2280, 3030, 3060, and 3080
  • Supports M.2 B+M Key or M Key Only
  •  SATA HDD/SSD
Supported Formats:
  • Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).
  • Whole Device Copy Function: All Formats, including proprietary formats.
  • GPT, MBR, and Advanced Formats
Supported O/S: All (Windows, Mac, Linux, and other stand-alone systems)
Hardware Specification:
LCD Display: 2 x 20 OLED Display
LEDs: 3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel: 4 Push Buttons(▲, ▼, OK, ESC)
Power Requirements:
 Power Input: Universal Power: 115VAC or 230VAC, 50/60Hz
Power Output: 12VDC 9A
Operational Temperature: 0°C ~ 60°C (32°F - 140°F)
Non-Operational Temperature: -20°C ~85°C (-4°F ~ 185°F)
Humidity: Operating: 20% ~ 95%, non-condensing
Non-operating: 5% to 95%, non condensing
Product Dimensions:
(LxWxH) 		NV-BMS4 - 292 mm x 229 mm x 76 mm (11.5 in. x 9 in. x 3 in.)
Product Weight: NV-BMS4 - 1.6 kg (3.6 lbs)
Certifications: FCC, CE, RoHS, and REACH

Frequently Asked Questions

What is the transfer speed of the M.2 NVMe/SATA/IDE Duplicator and Sanitizer 1-1 - NVS200

The NVS200 can achieve transfer speeds of up to 24 GB per minute, ensuring fast and efficient duplication processes.

Which operating systems are supported by the NVS200 in systems & files copy mode?

The NVS200 supports Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4), and Mac (HFS, HFS+, HFSX) file systems.

What are the available data sanitization options offered by the NVS200?

The NVS200 provides several data sanitization options, including Quick Erase, Full Erase, DoD Erase, and DoD Erase + Compare. These options allow users to securely erase data from the source devices.

Does the NVS200 support cross-interface duplication?

Yes, the NVS200 supports 1-1 cross-interface copy, allowing for direct duplication between different interface devices without the need for drivers or system restarts.

Can the NVS200 handle different types of M.2 devices?

Yes, the NVS200 supports both M key and B+M key for all M.2 PCIe and M.2 SATA devices. It is also compatible with SATA HDD/SSD devices, mSATA devices, and IDE devices.

What is the purpose of dual data verification offered by the NVS200?

The dual data verification, utilizing both bit-to-bit comparison and CRC calculation, ensures the accuracy and integrity of the duplicated data. It provides an additional layer of verification to confirm that the copied data matches the source data.
