Intelligent 9 Ultra High-Speed USB Duplicator

Name: Intelligent 9 Ultra High-Speed USB Duplicator
Brand: U-Reach Canada
Price: 1600.0 USD
Availability: InStock

$1,600.00 CAD

~~$2,649.75 CAD~~ $1,600.00 CAD

Save $1,049.75 CAD

Request a Quote

SKU: URCAUB9XXU3

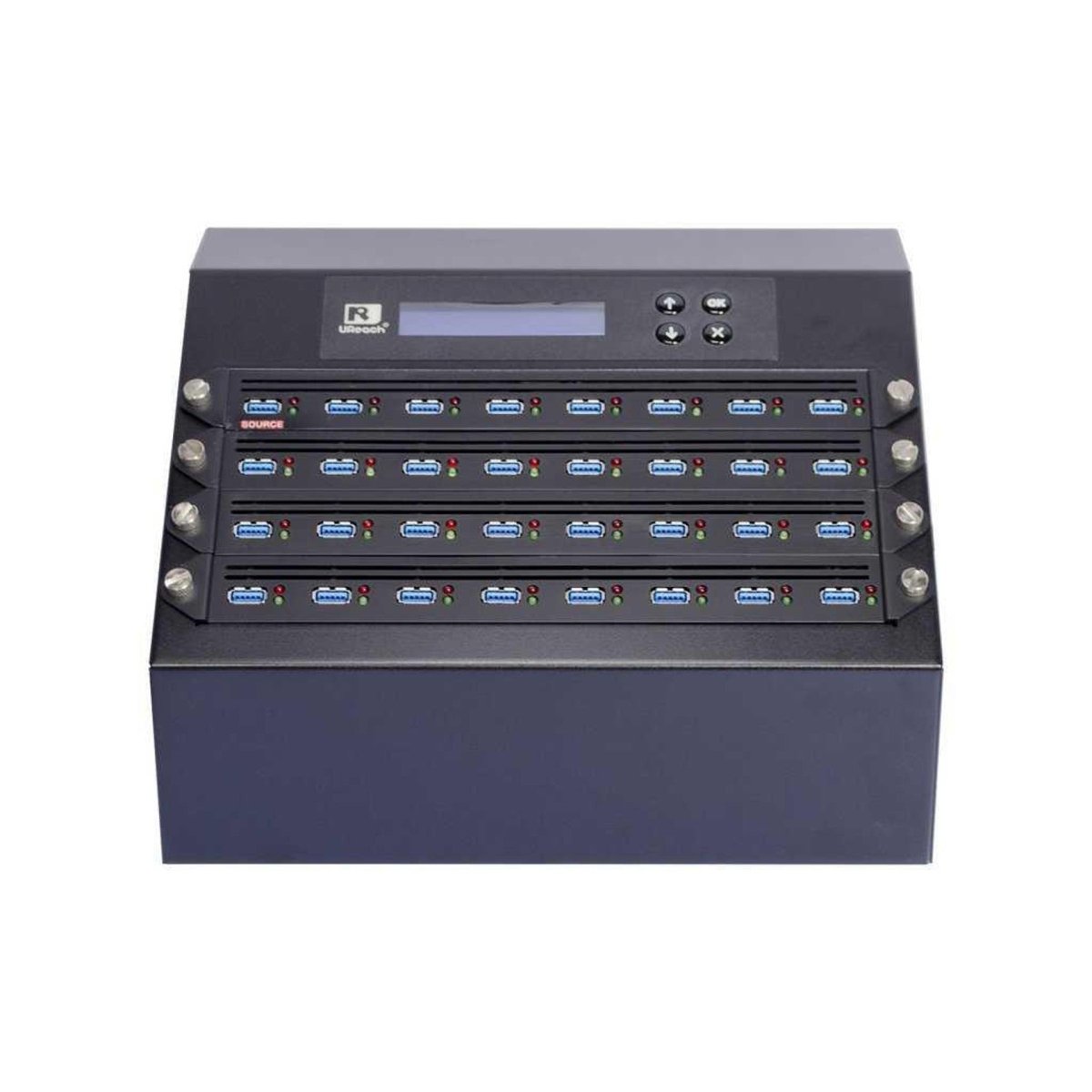

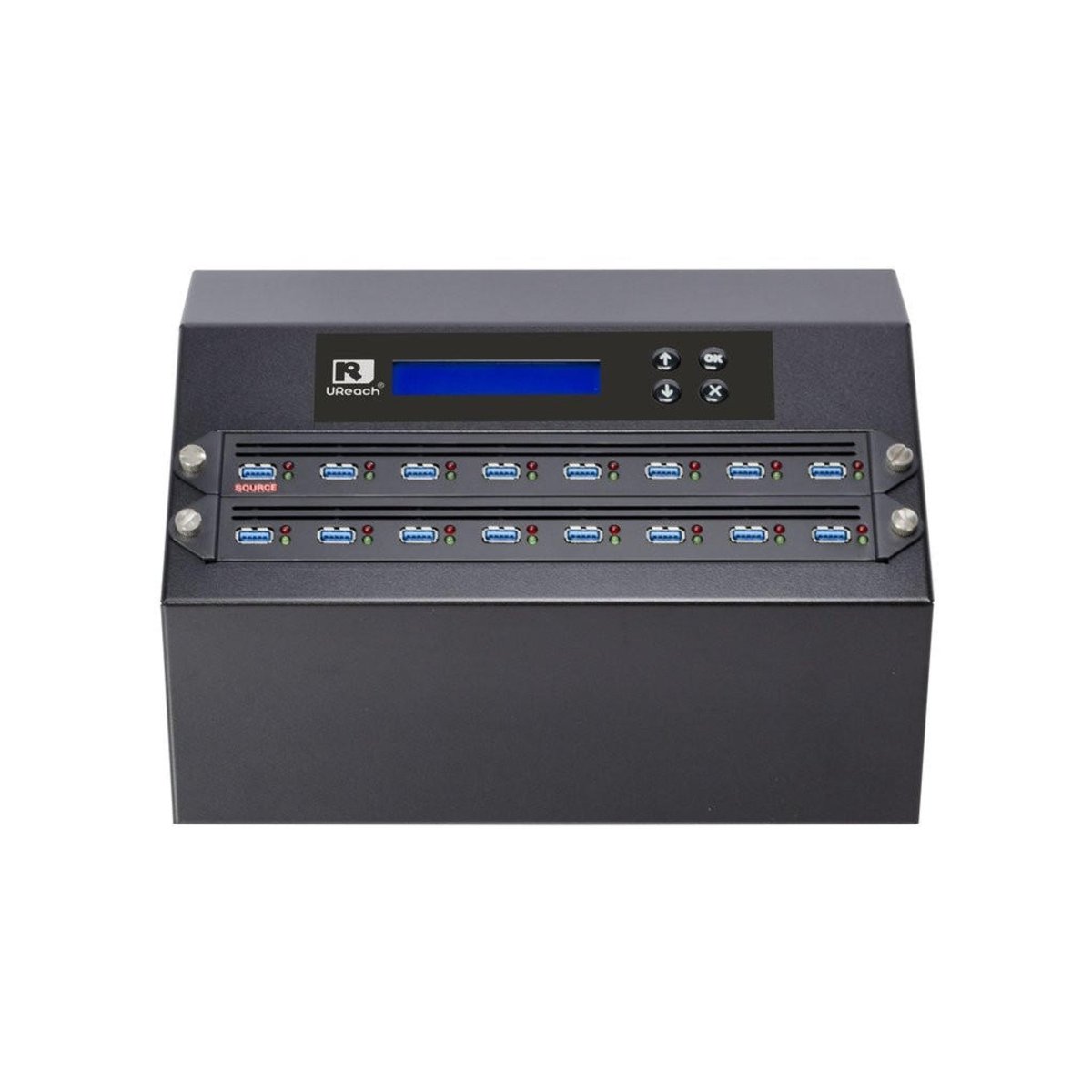

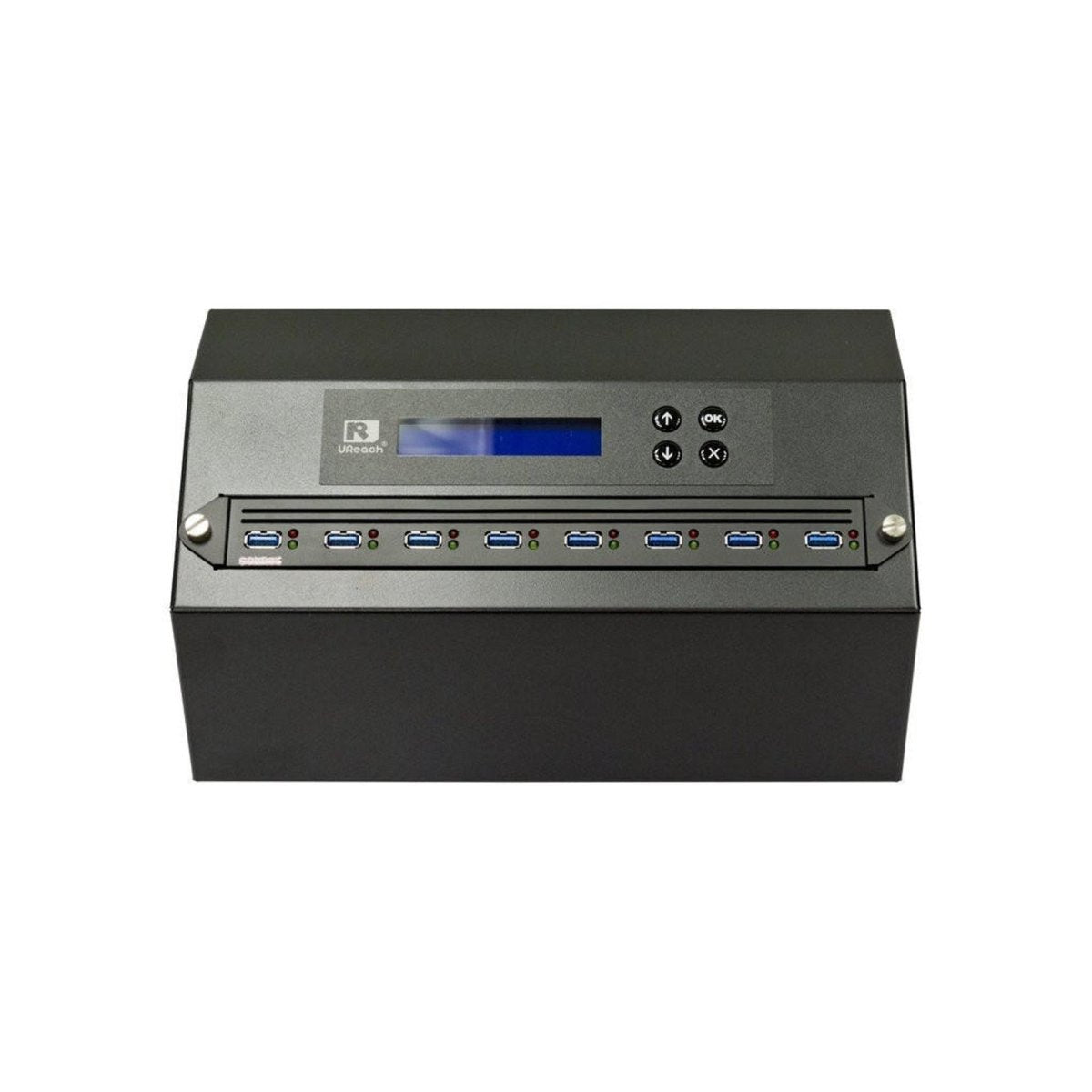

Intelligent 9 Ultra High-Speed USB Duplicator image 1 product photo

$1,600.00 CAD

~~$2,649.75 CAD~~ $1,600.00 CAD

Flawless Media Duplication with High-Speed Performance

The Intelligent U3 Series duplicator was meticulously designed with diversified media compatibility and high-speed performance in mind. It not only flawlessly duplicates in high-speed demands but also provides helpful examinations by delivering the most accurate testing functions known today. With its user-friendly interface, this duplicator offers stress-free operation without a steep learning curve. One of its standout features is the Event Log Report, which serves as an essential tool for production quality remote control and yield analysis.

Features

Standalone operation: No PC required to operate the duplicator.
Wide compatibility: Compatible with USB 2.0/3.0/3.1/3.2 devices and external USB HDDs.
High-speed performance: Speeds up to 10 GB/min.
Support for all data formats: Supports all types of data format copying while performing bit-for-bit duplication.
Quick copy for Linux and NTFS: Supports "quick copy" for Linux (ext2/ext3/ext4) and NTFS, FAT16/32 file systems.
Large capacity support: Supports 3TB and above capacity for external USB HDDs.
Support for eUSB (USB-DOM): Supports eUSB(USB-DOM) 2.54mm and 2.00mm (via adapter).
MD5 hash calculation: Calculates the MD5 hash of the entire drive, allowing users to quickly verify the source data integrity.
Log report management: Integrates a log report management system for easy record-keeping.

Intelligent Copy Option

Systems and Files (Quick Copy Mode)
The U3 Series duplicator offers the Systems and Files (Quick Copy Mode), which automatically copies only the data area, reducing the duration of the copy process. This mode supports various file formats, including Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). In case the file system format is not supported, the duplicator will automatically switch to the "whole media copy" mode.
Whole Media Copy Mode
In the Whole Media Copy Mode, the U3 Series duplicator copies from the initial sector to the end, bit-by-bit. This mode does not impose any format limitations, ensuring that all data is duplicated accurately. It is suitable for scenarios where you need an exact replica of the original media.
Intelligent Copy Modes
During the duplication process, the U3 Series duplicator intelligently marks the areas containing data in blue and the areas being copied in red. The actual copying time depends on the speed supported by the device, ensuring efficient and accurate duplication.

Impeccable High Speed

The U-Reach USB drive duplicator, part of the U3 Series, can copy up to 2GB/min on all devices simultaneously. Even with an increased number of targets, the U3 Series duplicator maintains impeccable high-speed performance, ensuring efficient duplication with no speed degradation.

Support for Various USB Devices

Thanks to its unique redundant power design, the U3 Series duplicator offers high compatibilities with various USB devices. Whether it's USB 2.0/3.0 external USB hard drives, MP3 players, or other special media with sufficient power supplies, the U3 Series duplicator can handle them with ease.

Event Log Report for Production Quality Control

The Event Log Report is an indispensable tool for production quality remote control and yield analysis. It records the operation time and result of the duplicator, providing crucial information for quality control. It records system and target information details, including VID/PID, MID/OID, and S/N number, for comprehensive record-keeping.

Intelligent U3 USB 3.0 Duplicator & Tester:
Specification:
	Maximum Transfer Speed:	10GB/min. Actual performance is dependent on device transfer speeds.
	Capacity:	Supports the largest sized devices available on the market.
	Operation Type:	Stand-alone, FPGA-based operation (Non-PC based)
	Language Support:	English or Japanese
	LCD Display:	Backlit Monochrome LCD Display
	Status LED:	2 LED Indicators (1 Red/ 1 Green) per Port
	Control Panel:	4 push buttons (up, down, OK, ESC)
Features:	Copy Modes:	Quick Copy (Systems & Files): Supports Windows, Mac and Linux. Whole Media Copy: Copies bit-by-bit regardless of format and data type.
	Compare Function	Bit-by-bit data comparison
	Sanitization Modes:	Quick Erase, Full Erase, and DoD Erase
Compatibility:
	Compatible Devices:	USB1.1/2.0/3.0/3.1/3.2 devices and USB-HDDs
	Compatible Devices (with required adapter):	eUSB (USB DOM) 2.54mm and 2.00mm
	Supported O/S:	All (Windows, Mac, Linux, and other stand-alone systems)
	Supported Formats:	Quick Copy: FAT16/32/64, Windows (NTFS), and Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX) Whole Media Copy: All Formats, including proprietary formats GPT, MBR, and Advanced Formats
Hardware Specifications:	Working Temperature:	5°C ~ 45°C (41°F ~ 113°F)
	Storage Temperature:	-20°C ~ 85°C (-4°F ~ 185°F)
	Working Humidity:	20% ~ 80%
	Storage Humidity:	5% ~ 95%
	Certifications:	FCC, CE, RoHS, MIL-STD810H
	Power Supply:	Power Adapter Input: 100-240VAC / 47-63Hz / 1.6A Max. Power Adapter Output: 12VDC / 9A for UB910U3 (10-Ports) Power Adapter Output: 12VDC / 12.5A for UB9XXU3 (20-Ports and Higher) Each USB 3.0 Port supports up to 2A

Frequently Asked Questions

What are the differences between "Quick" and "Whole media" copy?

Quick Copy: By selecting Function 7.2 Copy Area - System and Files, Quick Copy reduces duplication durations by copying only the areas that contain data in supported formats. It performs an analysis of data formats, capacities, and locations to determine the areas to be copied. However, if the source data exceeds the capacities of the target devices, the copy process will fail. Whole

Media Copy: Function 7.2 Copy Area - Whole Media initiates a bit-by-bit duplication of the entire source device without performing data analysis. This method ensures the most accurate data replication but is relatively slower compared to Quick Copy.

Why is the duplication process slow?

U-Reach flash duplicators support high copy speeds of up to 33MB/sec. If your flash device is copying slower than expected, please use "Function 6.2 Measure speed" to check the reading and writing speeds of your devices. For instance, if the measured writing speed is 10MB/sec, duplicating 1GB of data will take approximately 2 minutes.

What diagnostic tools are available for the flash duplicator?

The flash duplicator offers three featured diagnostic tools:

Function 4:
Media Check: This tool performs a rigorous quality check on inserted flash devices by conducting a thorough bit-by-bit inspection. It identifies any bad sectors in the flash devices.
Function 6.2:
Measure Speed: Within 10 seconds, this function measures the actual reading and writing speed of the flash devices. It aids in device quality control by estimating duplication durations.
Function 6.3:
Capacity Check: By using this function, you can determine the actual capacity of any inserted device. It proves to be an effective utility in detecting fake Flash devices.

How can I ensure data duplication accuracy?

To ensure accurate data duplication, follow these steps:

Select "Function 6.8 Calc. Checksum" to determine the consistencies of the data source and record the checksum value.
Choose "Function 2 Compare" to verify the consistencies of the target data. This function employs hardware-enabled bit-by-bit comparison, ensuring that the source data perfectly matches the target data.
