CF/CFast 121 Portable Duplicator - Mini Series

Standalone, no PC required.
High-speed copy reaching 3.9GB/min at each port.
Compatible with all CFAST cards.
Supports bit-by-bit copy for all formats.
Data Sanitization: quick erase, full erase, and DoD erase.

$200.00 CAD

Request a Quote

SKU: URCACF121

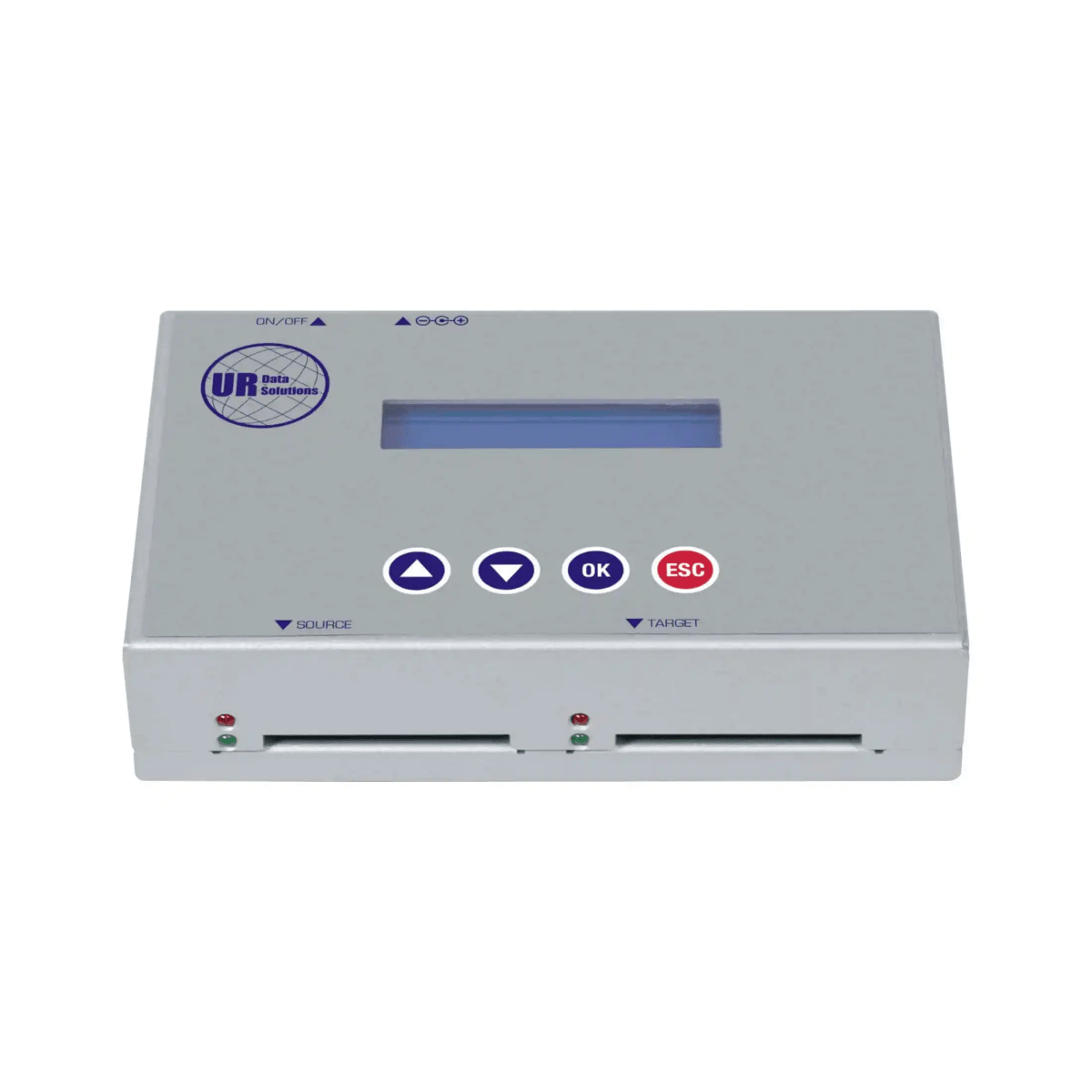

CF/CFast 121 Portable Duplicator - Mini Series image 1 product photo

$200.00 CAD

CFast 121 Portable Duplicator is an advanced and versatile device designed to meet the demands of professionals who require efficient data duplication and distribution via CFast cards. With its standalone design and impressive features, the CFast 121 duplicator offers convenience and high-speed performance without the need for a PC.

Key Features

- Standalone design, no PC required for operation: No PC, software, or drivers needed. Power on and start duplicating or erasing immediately with a simple 4-button interface and backlit LCD.
- Broad CompactFlash Compatibility: CF121: CF Type I/II — CF1.0 through CF6.0. CFast supported via optional adapter. CFast121: Native CFast card support.
- Built-In Verification: Bit-by-bit Compare function ensures the target is an exact match of the source. Use Copy + Compare mode to automate both operations in a single step.
- Real-Time Status Display:Backlit monochrome LCD shows progress percentage, elapsed time, data capacity, and copy mode. Three-color LEDs per port indicate Power (yellow), Pass (green), and Fail (red).
- Speeds Up to 3.9 GB/min High-speed FPGA engine with transfer rates up to 3.9 GB/min per port. Actual throughput depends on the CF/CFast media's native read/write speed.
- Two Copy Modes:
  - Quick Copy analyzes the source and copies only used data areas.
  - Whole Media performs a full bit-by-bit clone regardless of format — ideal for proprietary or unknown file systems.
- NIST-Compliant Data Sanitization: Quick Erase, Full Erase, and DoD 5220 three-pass erase — compliant with NIST SP 800-88r1 clear standards for secure data destruction.

Duplication

Copy Modes & Verification

The CF121/CFast121 offers two duplication modes and a hardware-level verification function to guarantee data accuracy.

Mode	How It Works	Best For
Quick Copy (System & Files)	Analyzes the source format (FAT16/32/64, NTFS, Ext2/3/4, HFS/HFS+/HFSX) and copies only occupied data areas. Faster duplication times.	Standard duplication of cards with recognized file systems. Ideal when speed is a priority and the source format is known.
Whole Media	Performs a complete bit-by-bit clone of the entire source device — data, empty space, format tables, and all sectors.	Proprietary formats, unknown file systems, forensic cloning, or when an exact sector-level replica is required.
Compare	Runs a strict bit-by-bit comparison between source and target after duplication to verify data integrity.	Quality assurance and mission-critical duplication where verified accuracy is mandatory.
Copy + Compare	Automatically runs the Compare function immediately after duplication completes — one operation, fully verified.	Production environments and any workflow where hands-free, verified duplication is preferred.

Note: If the source format is unrecognized during Quick Copy, the system automatically falls back to Whole Media mode and copies the entire device including empty space.

Data Sanitization

Secure Erase Functions

Three built-in sanitization modes ensure data is permanently and irreversibly destroyed from CF and CFast media.

1 PASS

Quick Erase

Erases data content while preserving the existing FAT16/32 format structure. Fastest erase option for routine reuse of media.

1 PASS · FULL

Full Erase

Overwrites the entire device bit-by-bit, destroying all data, format tables, and file system structures. NIST SP 800-88r1 Clear compliant.

3 PASS · DoD 5220

DoD Erase

Three-pass overwrite (0x00, 0xFF, Random) compliant with U.S. Department of Defense 5220.22-M standards for complete data destruction.

Compatibility

Supported Devices & Formats

**Device Compatibility**
CF121	CompactFlash Type I/II — CF1.0, CF2.0, CF3.0, CF4.0, CF4.1, CF5.0, CF6.0. CFast cards supported via optional adapter.
CFast121	CFast cards (native support).

**File System & Format Support**
Quick Copy	FAT16, FAT32, FAT64 (exFAT), NTFS, Linux Ext2/Ext3/Ext4, Mac HFS/HFS+/HFSX
Whole Media Copy	All formats — including proprietary, unknown, and unrecognized file systems. Supports GPT, MBR, and Advanced Format partition schemes.
Operating Systems	Windows, Mac, Linux, and any standalone system. The duplicator operates independently of any host OS.

Utilities

Built-In Diagnostic & Management Tools

The CF121/CFast121 includes onboard utilities for media management, quality control, and firmware maintenance.

Function	Description
Format (Auto / FAT16 / FAT32)	Format target cards to FAT16 or FAT32 with configurable cluster sizes. Auto mode selects the appropriate format based on capacity (below 2 GB → FAT16, above 2 GB → FAT32).
Show CF/CFast Info	Displays card details including brand, part number, firmware version, serial number, capacity, file format, and content size.
Show Transfer Mode	Reports the maximum supported transfer mode of the inserted media (PIO, MDMA, UDMA).
Checksum Calculation	Generates a checksum value of the source data for verification and record-keeping purposes.
System Update	Field-upgradeable firmware via CF/CFast card loaded with the update file.
Transfer Speed & Mode Settings	Seven CF transfer mode options (PIO 4 through UDMA 4) and five speed presets (Slowest through Fastest) for fine-tuning performance with varying media quality.
Source Error Tolerance	Configure the number of allowable bad sectors on the source device during copy/compare/erase operations. Set to 0 for critical data requiring an exact full clone.

Model:	CF121
Target Ports:	1:1
Specification:
	LCD Display:	2x20-Backlit Monochrome LCD Display
	LEDs:	2 LED (Red/Green) Indicators per Port Green (Pass) and Red (Fail)
	Control Panel:	4 push buttons (Forward, Backward, OK, Esc)
	Power Requirements:	Power Adapter Input: 100-240VAC / 47-63Hz / 0.31A Max. Power Adapter Output: 5VDC / 2A
	Physical Dimensions (LxWxH):	CF121 – 110 mm x 150 mm x 35 mm (4.33 in. x 5.91 in. x 1.38 in.)
	Product Weight:	CF121– 0.5 kg (1.10 lbs.)
	Operational Temperature:	5°C ~ 45°C (41°F ~ 113°F)
	Non-Operational Temperature:	-20°C ~ 85°C (-4°F ~ 185°F)
	Humidity:	Operating: 20% ~ 80%, non-condensing Non-operating: 5% ~ 95%, non-condensing
	Certifications:	FCC, CE, RoHS, REACH
Compatibilities:	Compatible Devices:	CF Type I/II, CF1.0, CF2.0, CF3.0, CF4.0, CF4.1, CF5.0, and CF6.0.
	Compatible Devices (Requires Optional Adapters):	CFAST
	Supported Formats:	Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX). Whole Device Copy Function: All Formats, including proprietary formats. GPT, MBR, and Advanced Formats.
	Supported O/S:	All (Windows, Mac, Linux, and other proprietary systems).
Product Features:	Operation Type:	Stand-alone, FPGA-based operation (Non-PC based design).
	Bandwidth Performance:	Peak transfer speeds up to 3.9GB/min. (66MB/sec.). Dedicated bandwidth enables high-volume replications without speed degradation.
	Controller Design:	Embedded controller is designed to support capacities over 2TB+. Constant improvement supports latest market-available devices.
	Read-Only Source Port:	There are no options to disable this built-in feature ad it is integrated with all U-Reach duplicators.
	Portable Design:	Handheld design with all new metal chassis for rigidity
Product Functions:	2 Copy Modes:	Quick Copy (System & Files): Supports Windows, Mac, and Linux. Whole Media: Copies bit-by-bit regardless of format and data type.
	Compare (Verification):	Bit-by-bit data comparison from the source device to target device(s
	3 Sanitization Modes:	Quick Erase Full Erase DoD Erase (DoD 5220.22-M)
	Media Checking Tools:	Diverse tools for verifying flash quality for bad sectors, capacity authenticity, and read/write speeds.
	Do Format:	Automatically detects and formats device(s) to either FAT16 or FAT32.
	Measure Speed:	Performs speed check by overwriting and reading the connected device(s).
	Capacity Check:	Verifies the maximum capacity available.
	Calc. Checksum:	Calculates the checksum value from the source device.

Frequently Asked Questions

Can the CF 121 duplicator copy cards of different capacities?

Yes, the CF 121 can duplicate CF cards of varying capacities, ensuring that each copy accurately reflects the source card's content, regardless of the size difference.

Is it necessary to format the CF cards before duplication?

While not strictly necessary, formatting CF cards before duplication can help prevent potential errors and ensure a clean, efficient copying process.

Does the CF 121 support copying between different types of flash memory cards?

The CF 121 is primarily designed for CF cards. However, it can support other types of flash memory cards, such as CFast, with the use of an optional adapter.

How long does it take to duplicate a CF card?

The duplication time depends on the size of the CF card and the amount of data being copied. With transfer speeds of up to 3.9GB per minute, the CF 121 is designed for high-speed duplication to save time.

Can the CF 121 duplicator verify that the copies are exact replicas of the original?

Yes, the CF 121 includes a bit-by-bit comparison feature that ensures each copy is an exact replica of the source CF card, including all hidden data.

What does the DoD Erase option do?

The DoD Erase option provides a secure erasure method that complies with the U.S. Department of Defense's 5220.22-M standard for data sanitization, ensuring that erased data cannot be recovered.

Is the CF 121 easy to use for individuals without technical expertise?

Absolutely, the CF 121 is designed with a user-friendly interface, making it accessible and easy to operate even for users with limited technical knowledge.
